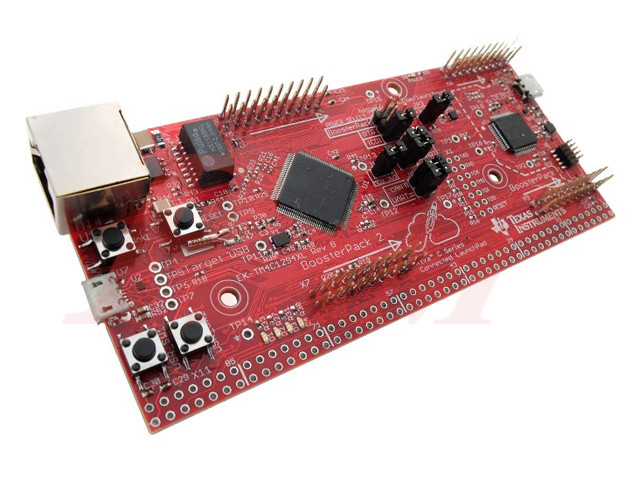

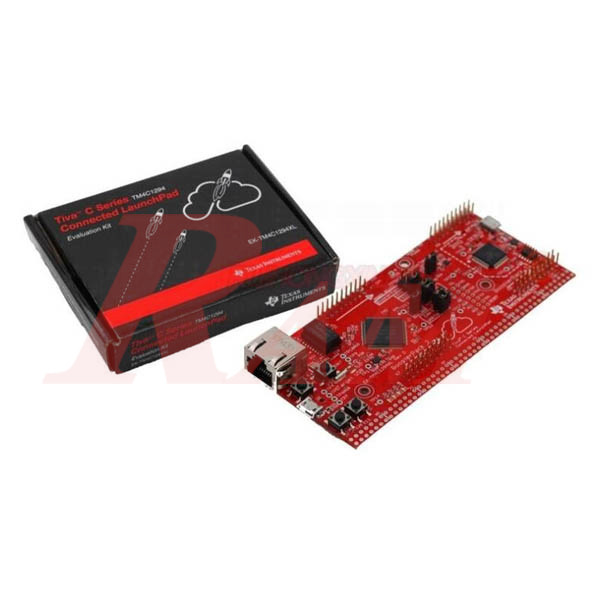

TM4C1294XL – TI LaunchPad™ Tiva™ C Evaluation Kit
Manufacturer: Texas Instruments
Product Type: MCU Evaluation / Development Board
Product Overview
The TM4C1294XL LaunchPad™ is a high-performance evaluation and development kit based on the Tiva™ C Series ARM® Cortex®-M4F microcontroller. It is designed for connected and industrial embedded applications, offering integrated Ethernet, USB, rich peripherals, and on-board debugging. The board is ideal for rapid prototyping, learning, and developing IoT and networking applications.
Key Features
MCU & Core
- MCU: TM4C1294NCPDT (Tiva™ C Series)
- 32-bit ARM® Cortex®-M4F core with floating-point unit
- Clock speed up to 120 MHz
Memory
- 1 MB Flash memory
- 256 KB SRAM
- On-chip ROM with peripheral drivers and bootloader support
Connectivity & Interfaces
- 10/100 Ethernet MAC + PHY (RJ45 connector on board)
- USB 2.0 Host / Device / OTG
- CAN interface support
- UART, SPI/SSI, and I2C communication interfaces
Analog & Digital Peripherals
- 12-bit ADC (up to 1 MSPS)
- Motion control PWM modules
- Multiple timers, capture, compare, and PWM functions
- Analog comparators
- Wide range of GPIO pins for external interfacing
On-Board Features
- On-board In-Circuit Debug Interface (ICDI) for programming and debugging via USB
- User-programmable RGB LED
- User push buttons and reset button
- Power and status LEDs
- Current-measurement jumper
Expansion
- Dual 20-pin stackable headers (40-pin total)
- Compatible with BoosterPack™ XL expansion modules
- Partial compatibility with other LaunchPad BoosterPacks
Software Support
- TivaWare™ for C Series (drivers, examples, and middleware)
- Compatible with Code Composer Studio™, Keil, IAR, and other ARM development tools
Typical Applications
- IoT and connected embedded systems
- Ethernet-based control and monitoring
- Industrial automation
- Networking and gateway development
- Embedded systems education and prototyping
Notes
- Powered via USB or external supply options
- Intended for development and evaluation purposes, not as a finished end product
