DC Spindle Air Cooling 500W ER11 + 52mm Clamps + Power Supply

https://www.ram-e-shop.com/web/image/product.template/8147/image_1920?unique=b154e15

4,950.00 EGP 4950.0 EGP 4,950.00 EGP

4,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SPINDEL.DC.500W.ER11

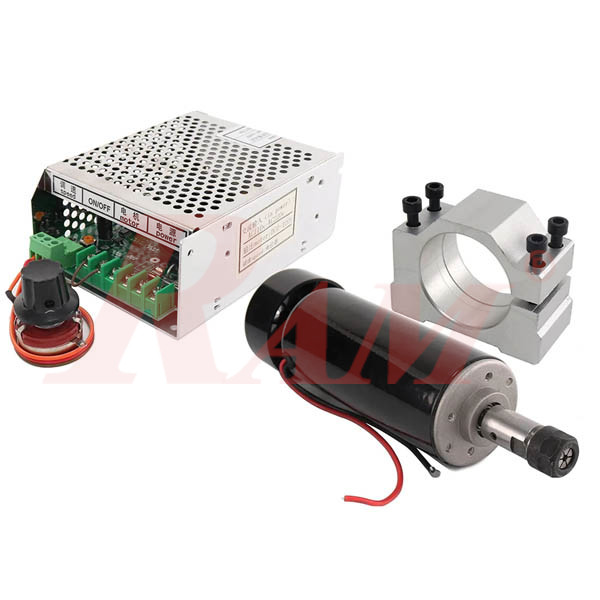

The complete set includes:

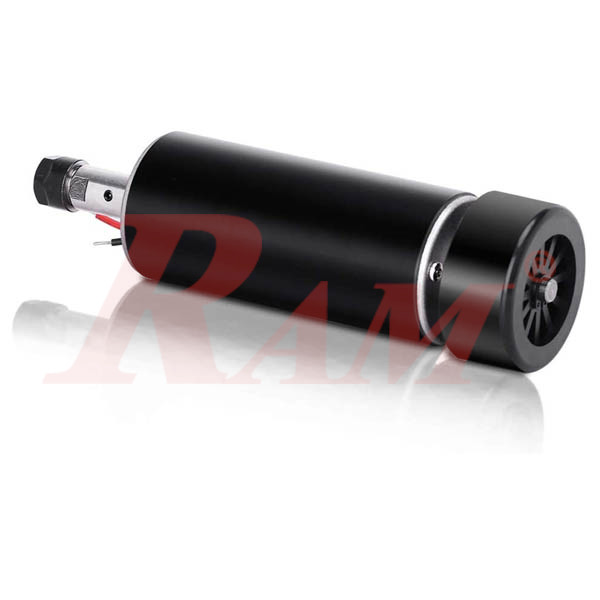

  • 1 x 500W spindle motor

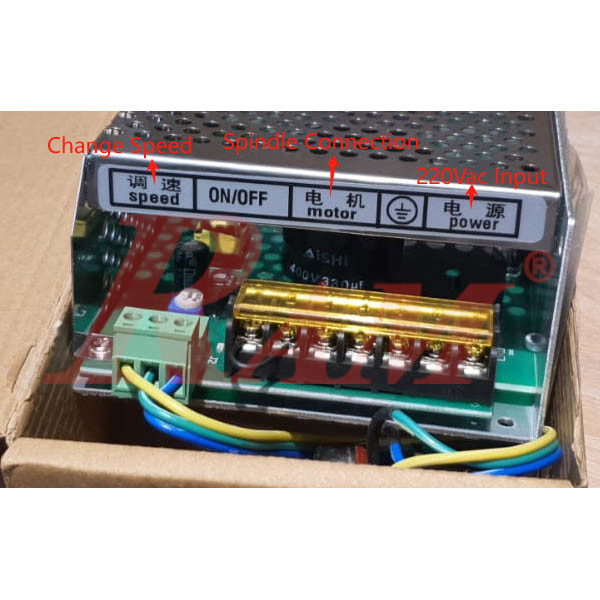

  • 1 x Power supply (With manual variable speed switch)
  • 1 x 52MM Mount bracket
  • 1 X ER11 collect : 3.175MM
  • 4 x Screws

Features :

  • Input Power Voltage: 220Vac
  • Power: 500W
  • Spindel Speed: Up to idle up to 15,000 Rev/min
  • Torque: 5000G/CM
  • Insulation resistance:> 2 megohms
  • Dielectric strength: 400V

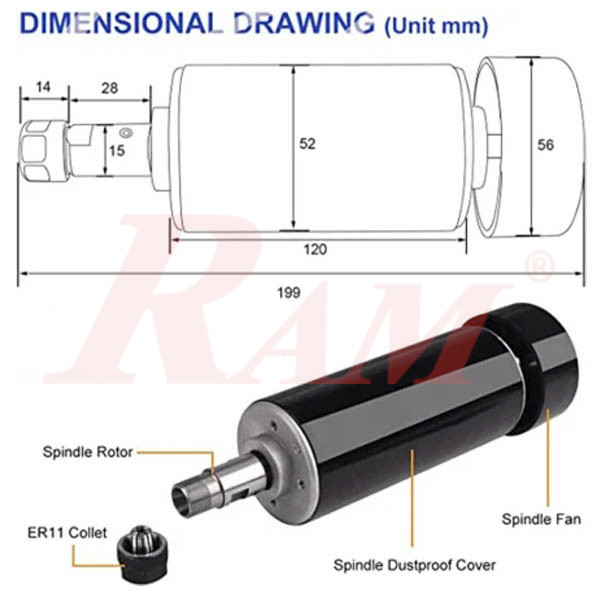

  • Diameter: 52mm
  • Chuck portion length: 45MM
  • Chuck portion diameter: 16mm
  • Motor Length: 200MM
  • High precision spindle runout 0.01-0.03
