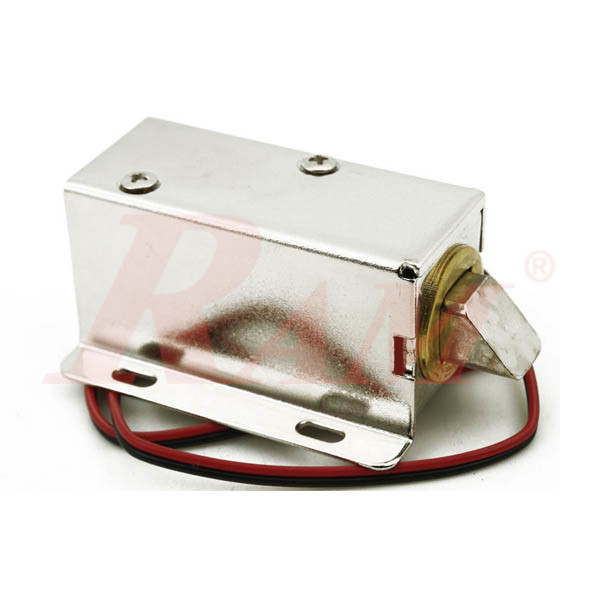

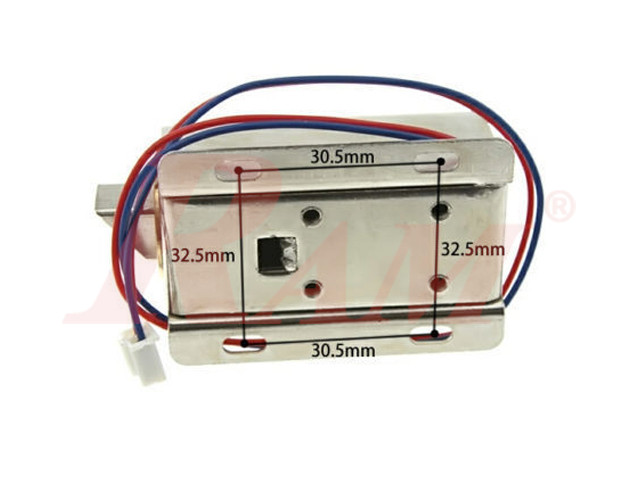

Electric Solenoid Lock 12Vdc 600mA

https://www.ram-e-shop.com/web/image/product.template/7337/image_1920?unique=afa6b0a

Door Lock

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SOLENOID.LOCK.12VDC

This electric lock is great for Lockers, Small wooden doors, or Windows

Specifications

  • Working voltage: 12VDC
  • Working current: 600mA
  • Consumption power: 7.5W
  • Extension length: 10mm
  • Working temperature: -40°C to +50°C
  • Weigh: 0.2KG

Advantages

  • Low Temperature, safe & Durable
  • Low Power, Environmental Protection
  • Special photoelectricity control, three steps current application
  • Long Life  with 500000 Operations
  • MOV Provides Reverse Current Protection
  • Superior Strength Aluminium Alloy, Solid Stain-
  • less Steel Bolt
  • Door statue signal output contact(NC.COM)
  • Double protection for loading current
  • Auto-relock if no Action within 5 seconds.
