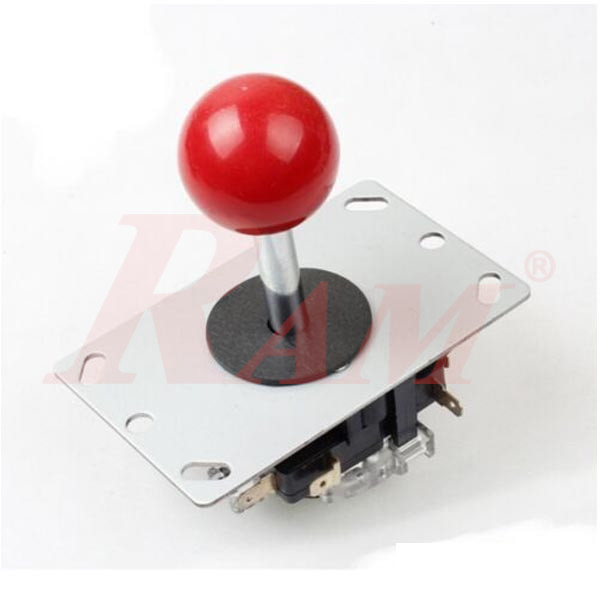

Heavy Duty Arcade Joystick - Short Handle (SKU#SF9182)

https://www.ram-e-shop.com/web/image/product.template/6733/image_1920?unique=263afec

650.00 EGP 650.0 EGP 650.00 EGP

650.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SF9182

Description

A ball top arcade style 4/8 way joystick. This joystick uses 4 standard micro-switches to give a precise, wearing, and positive tactile feel and allows for up to 8 directions to be sensed. The restrictor plate fitted to the bottom of the joystick helps protect the micro-switches from excessive force whilst providing full freedom of movement in both joystick X and Y directions. Should any of the micro-switches eventually need replacing they can be easily swapped out without the need of a screwdriver.

A nylon (red) ball attached to the top of the joystick gives the joystick a comfortable ergonomic feel and a solid 9mm polished metal shaft finishes of the classic arcade joystick look and feel. For attaching the joystick to the cabinet or control panel, the joystick has a square mounting plate measuring 95x60mm with 6 mounting holes for up to M4 screws/bolts. A loose dust ring at the base of the joystick helps cover the mounting hole and protect the mechanism below from loose dust or dirt.

Specification:

  • Joystick shaft (above mounting plate/exc ball): 35mm
  • Joystick shaft (above mounting plate/inc ball): 70mm
  • Joystick ball: 35mm
  • Shaft diameter: 9mm
  • Mounting plate: 95mm x 50mm x 1.5mm
  • Fixing hole size: 4.5mm
  • Depth of joystick (below mounting plate): 30mm (approx)
  • Number of micro-switches: 4
  • Micro-switch contact type: COM-NO
