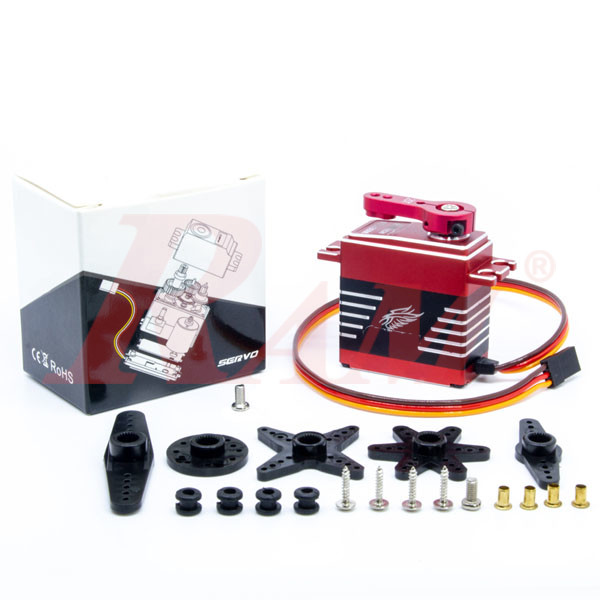

FT5835M Servo Motor 180° 35.5 kg.cm Metal Gear

https://www.ram-e-shop.com/web/image/product.template/8146/image_1920?unique=e133d2a

Aluminum Mid-Shell High-Quality Servo 180 Degree

1,950.00 EGP 1950.0 EGP 1,950.00 EGP 2,650.00 EGP

1,950.00 EGP 2,650.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FT5835M

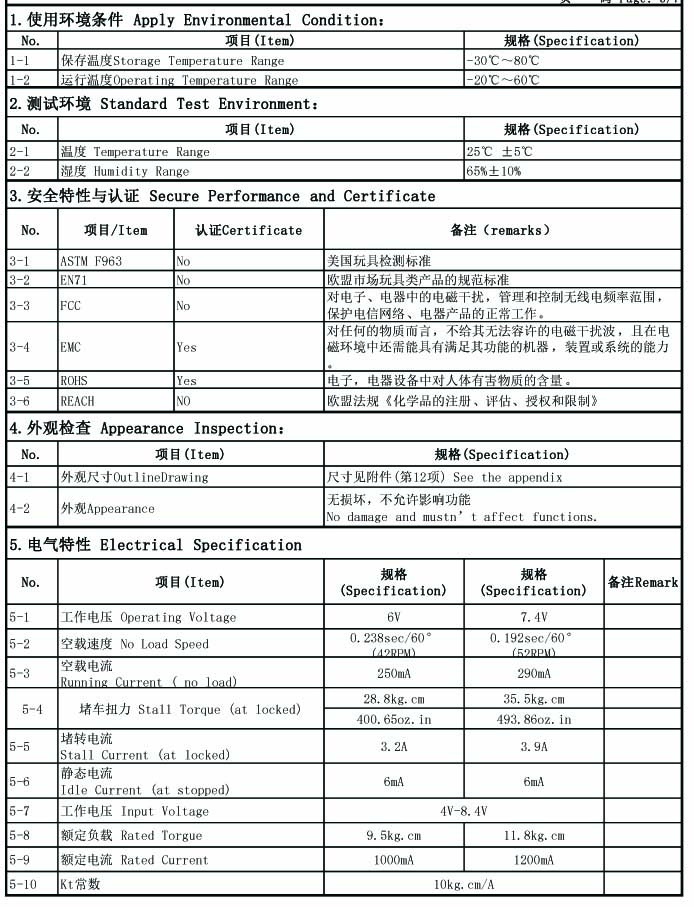

Electrical Specification

Item
Specification
Specification
Operating Voltage
6V
7.4V
No Load Speed
0.238sec / 60° (42RPM)
0.192sec / 60° (52RPM)
Running Current ( no load)
250mA
290mA
Stall Torque (at locked)
28.8 kg.cm
35.5 kg.cm
Stall Current (at locked)
3.2A
3.9A
Idle Current (at stopped)
6mA
6mA
Input Voltage
4V - 8.4V
4V - 8.4V
Rated Torque
9.5kg.cm
11.8kg.cm
Rated Current
1000mA
1200mA
Kt
10kg.cm/A
10kg.cm/A

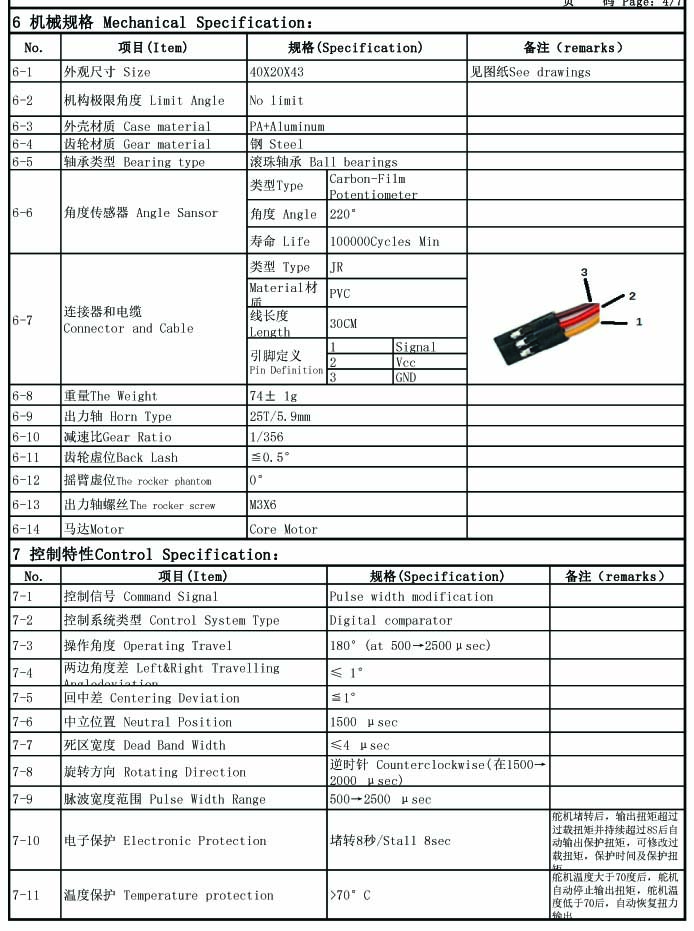

Mechanical Specification

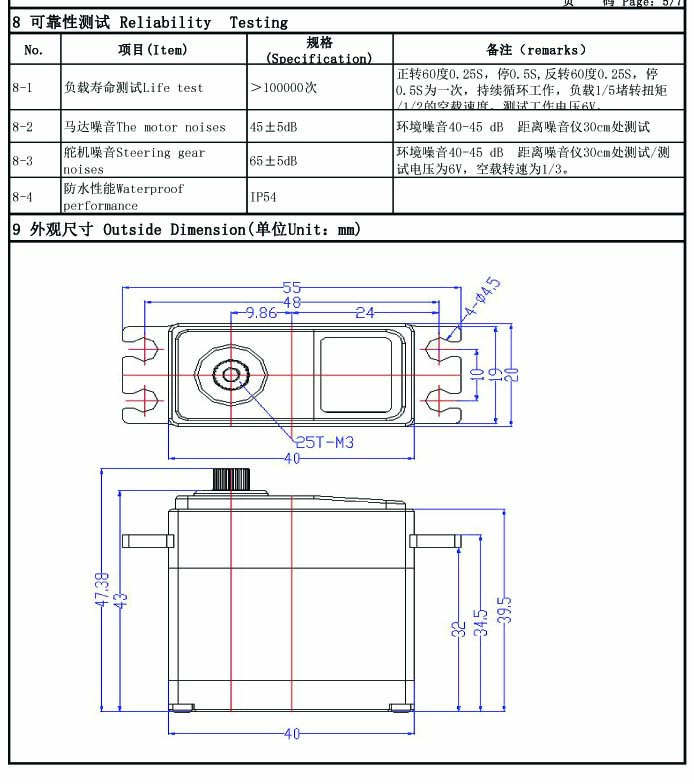

  • Size: 40 x 20 x 43 mm
  • Limit Angle: No limit
  • Case Material: PA+Aluminum
  • Gear Material: Steel
  • Bearing Type: Ball bearings
  • Angle Sensor:
    • Type: Carbon-Film Potentiometer
    • Angle: 220°
    • Life: 100000 Cycles Min
  • Horn Type: 25T/5.9mm
  • Command Signal: Pulse width modification
  • Control System Type: Digital Comparator
  • Operating Travel: 180°± 5°(at 500→2500μsec)
