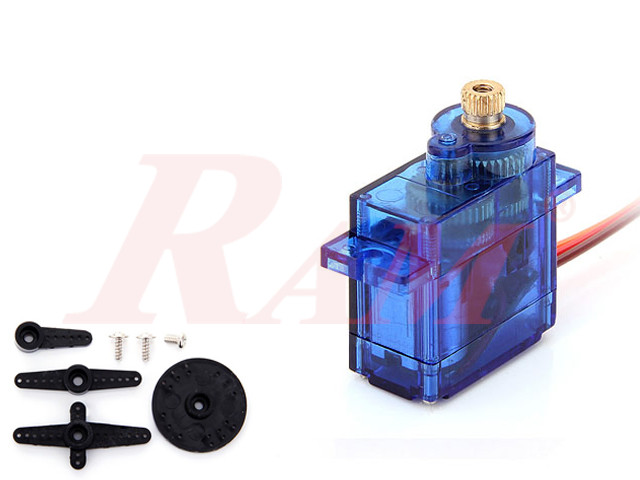

FS90MG Micro Servo Motor 180° 2.2 kg.cm Metal Gears

https://www.ram-e-shop.com/web/image/product.template/7126/image_1920?unique=e133d2a

High-Quality Servo 180 Degree

350.00 EGP 350.0 EGP 350.00 EGP

350.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FS90MG

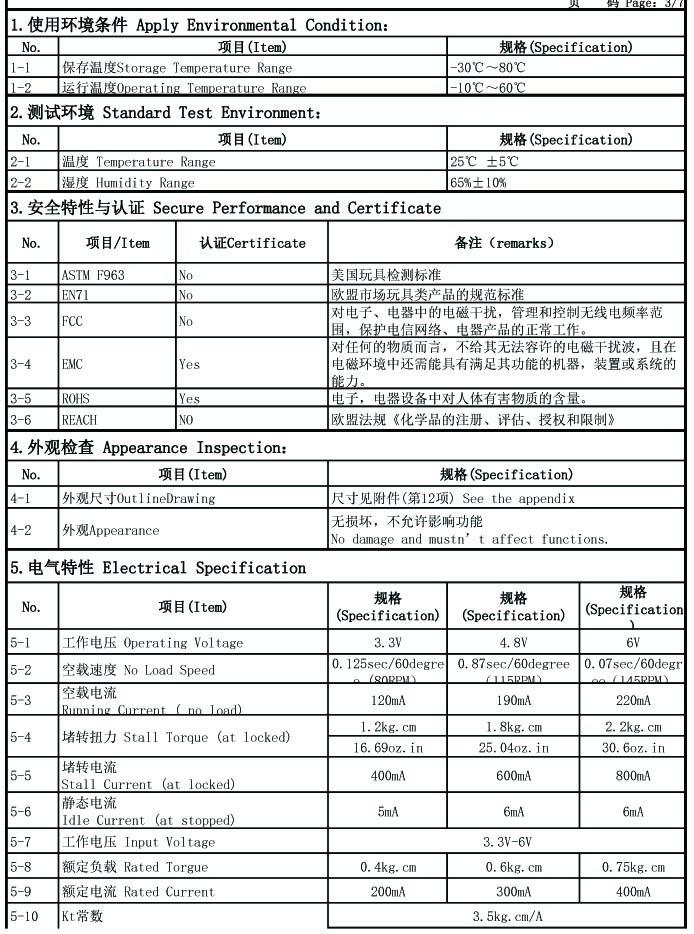

Electrical Specification

Item
Specification
Specification
Specification
Operating Voltage
3.3V
4.8V
6V
No Load Speed
0.125sec / 60degree (80RPM)
0.87sec / 60degree(115RPM)
0.07sec / 60degree(145RPM)
Running Current ( no load)
120mA
190mA
220mA
Stall Torque (at locked)
1.2 kg.cm
1.8 kg.cm
2.2 kg.cm
Stall Current (at locked)
400mA
600mA
800mA
Idle Current (at stopped)
5mA
6mA
6mA
Input Voltage
3.3V-6V
3.3V-6V
3.3V-6V
Rated Torgue
0.4kg.cm
0.6kg.cm
0.75kg.cm
Rated Current
200mA
300mA
400mA
Kt
3.5kg.cm/A
3.5kg.cm/A
3.5kg.cm/A

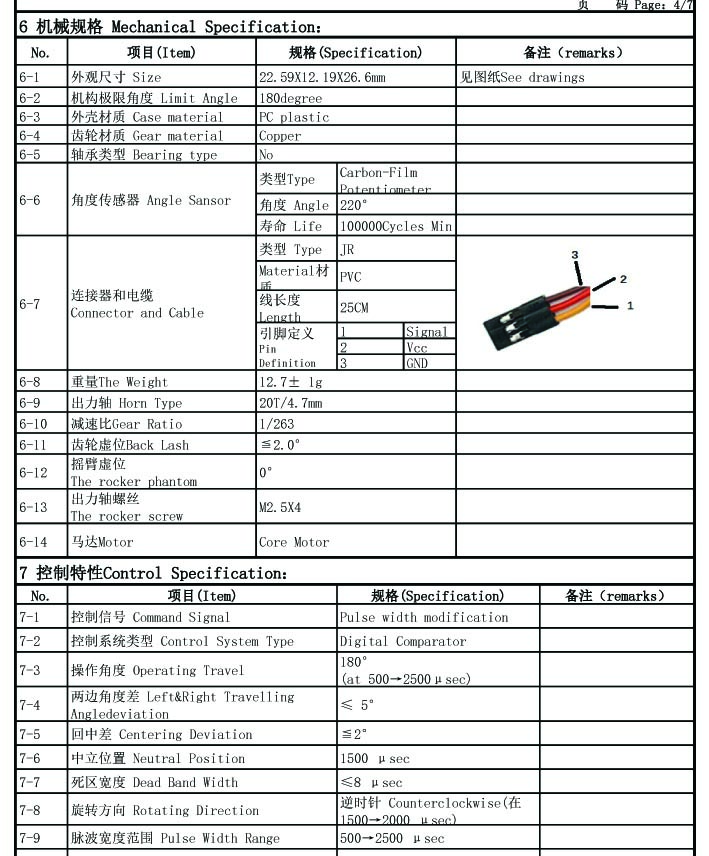

Mechanical Specification:

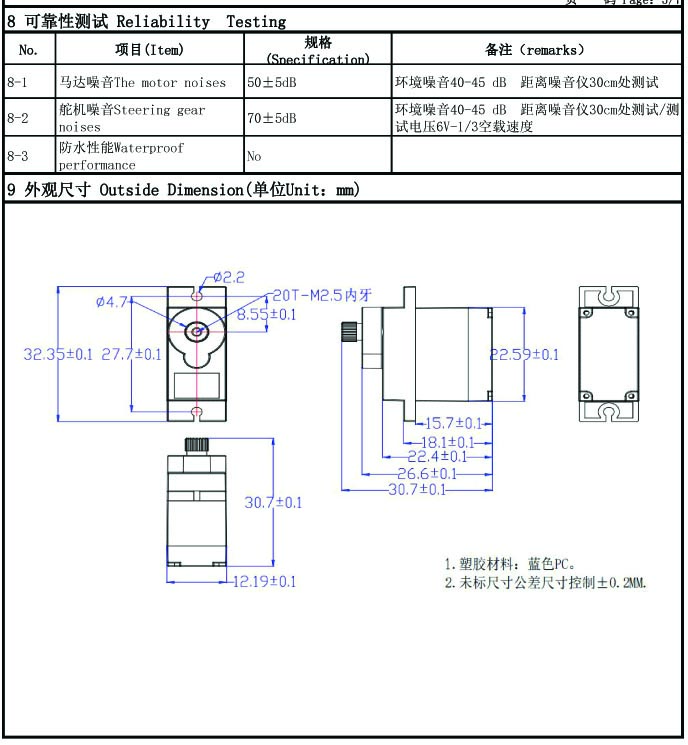

  • Size: 22.59 x 12.19 x 26.6 mm
  • Angle Sensor:
    • Type Carbon-Film Potentiometer
    • Angle 220°
    • Life 100000Cycles Min
  • Operating Travel: 180° (at 500→2500μsec)
  • Limit Angle: 180 degree
  • Horn Type: 20T/4.7mm
  • Command Signal: Pulse width modification
  • Control System Type: Digital Comparator
  • Case material: PC plastic
  • Gear material: Copper
  • Bearing Type: No
