FS5103B Servo Motor 180° 3.2 kg.cm Plastic Gears

https://www.ram-e-shop.com/web/image/product.template/7119/image_1920?unique=e133d2a

High-Quality Servo 180 Degree

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FS5103B

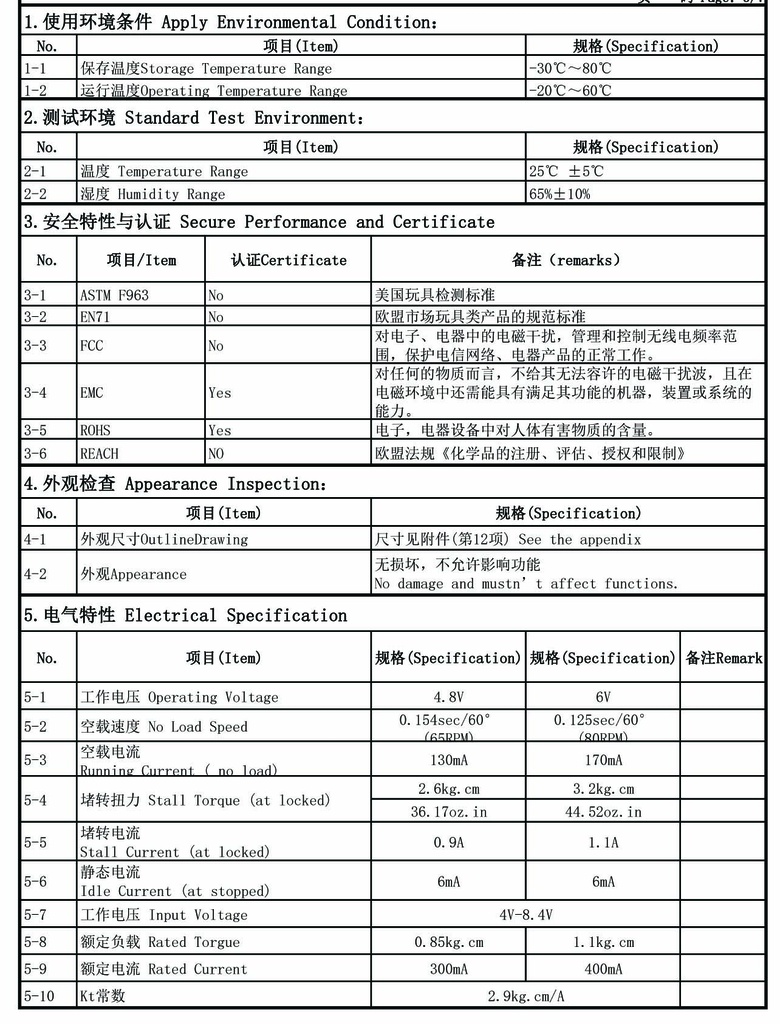

Electrical Specification

Item

Specification

Specification

Operating Voltage

4.8V

6V

No Load Speed

0.154sec / 60° (65 RPM)

0.125sec / 60° (80 RPM)

Running Current ( no load)

130mA

170mA

Stall Torque (at locked)

2.6 kg.cm

3.2 kg.cm

Stall Current (at locked)

0.9A

1.1A

Idle Current (at stopped)

6mA

6mA

Input Voltage

4V - 8.4V

4V - 8.4V

Rated Torque

0.85kg.cm

1.1kg.cm

Rated Current

300mA

400mA

Kt

2.9kg.cm/A

2.9kg.cm/A

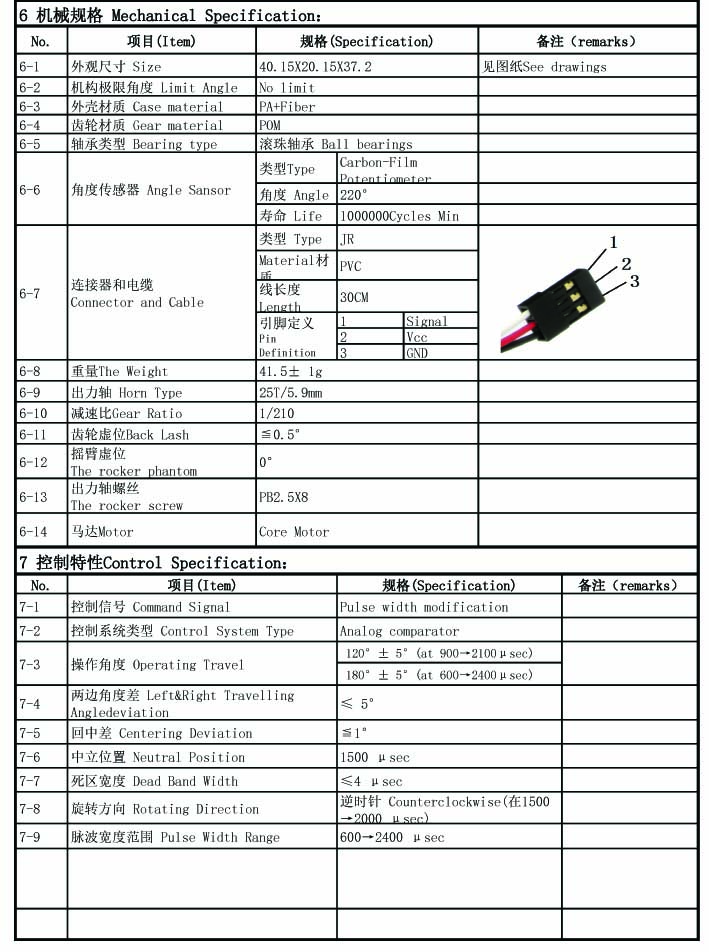

 Mechanical Specification

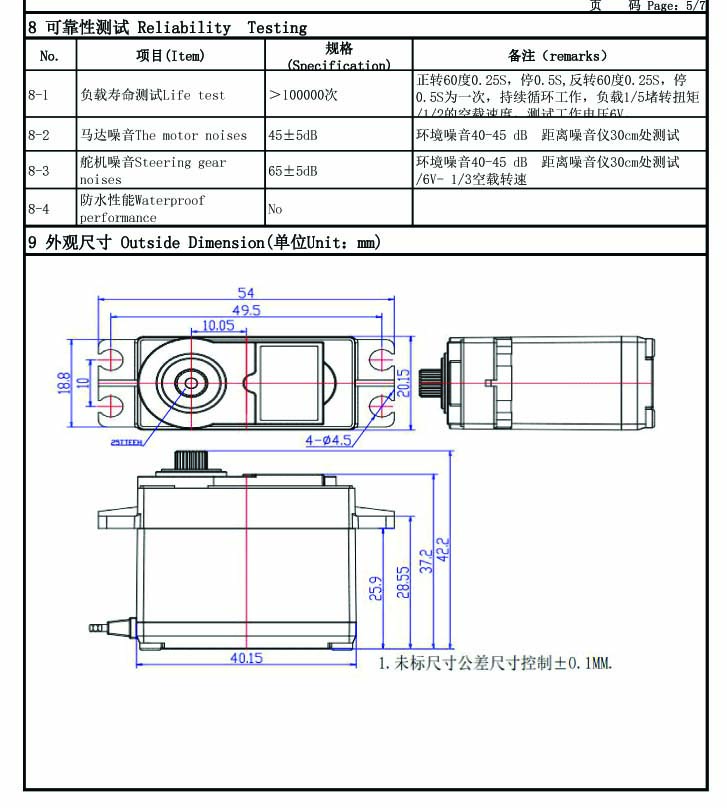

  • Size: 40 x 20 x 37 mm
  • Limit Angle: No limit
  • Case Material: PA+Fiber
  • Gear Material: POM
  • Bearing Type: Ball bearings
  • Angle Sensor:
    • Type: Carbon-Film Potentiometer
    • Angle: 220°
    • Life: 1000000Cycles Min
  • Horn Type: 25T/5.9mm
  • Command Signal: Pulse width modification
  • Control System Type: Analog Comparator
  • Operating Travel:
    • 180°± 5°(at 600→2400μsec)
    • 120°± 5°(at 900→2100μsec)
