Manufacturer Brand: DFRobot
INTRODUCTION

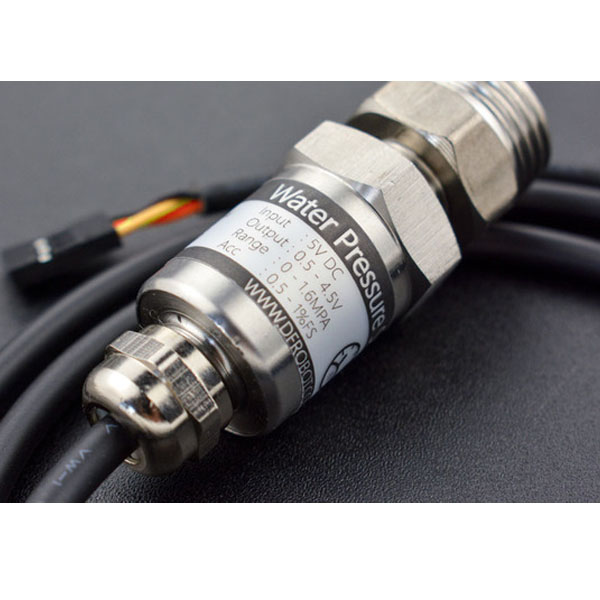

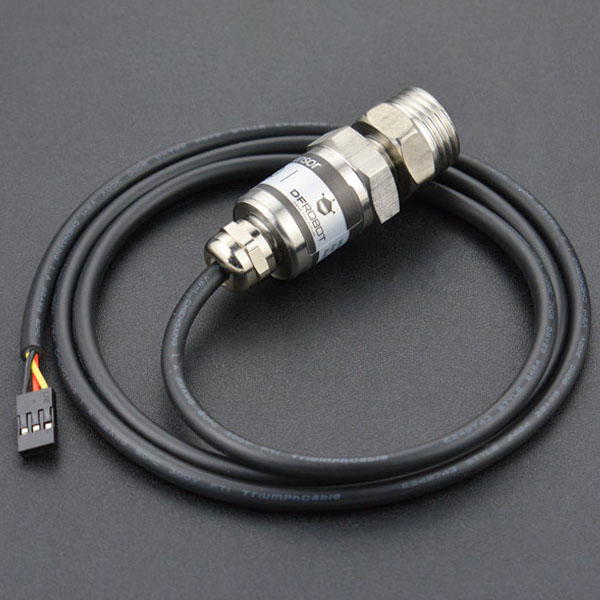

This water pressure sensor supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers. The water pressure sensor can be plugged into an Arduino board, wiring-free.
Put it with a Solenoid Valve, Water Turbine Generator, and other sensors, you can build a smart water control system. Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, and how strong the water pressure is. It can be widely applied to smart home control systems (SCS), Internet of Things (IoT), and device detections.
FEATURES
- Support water pressure detection of living environmental water systems, such as houses, gardens and farms.
- Support water pressure detection of outdoor environments, such as rivers, lakes, and seas.
- Support water pressure detection of tanks.
- Support liquid level detection in special situations detection in specified liquids.
SPECIFICATION
- Medium: liquid/gas without corrosion

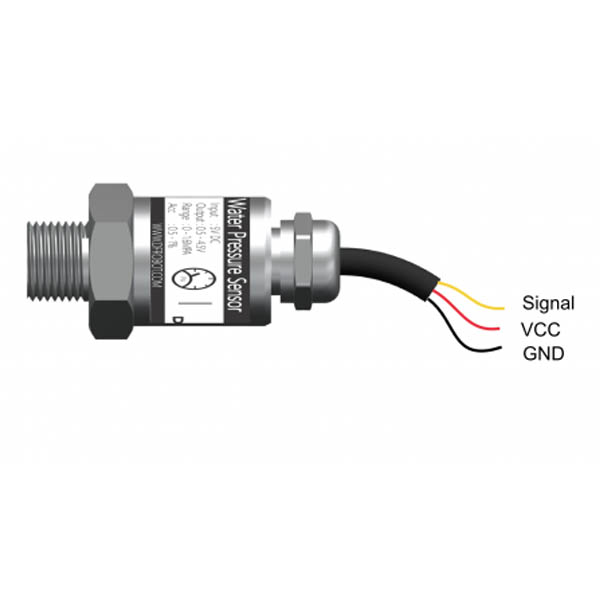

- Wiring: 3Pin (Signal-VCC-GND)
- Pressure Measurement Range: 0~1.6 Mpa
- Input Voltage: +5 VDC
- Output Voltage: 0.5~4.5 V
- Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)

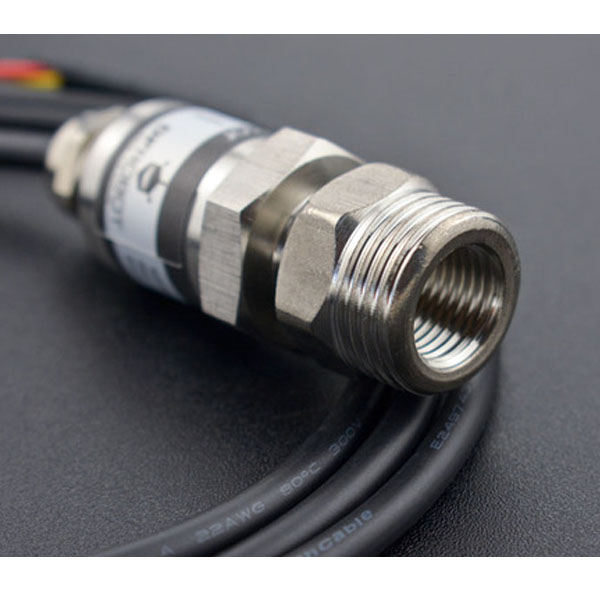

- Threadably: G1/4
- Adapter: G1/2 to G1/4
- Waterproof level: IP68
- Operating Temperature: -20~85°C
- Response Time: <2.0 ms
- Quiescent Current: 2.8 mA
- Normal Operating Pressure: ≤2.0 Mpa
- Damaged Pressure: ≥3.0Mpa
- Service Life: 10’000’000 times
