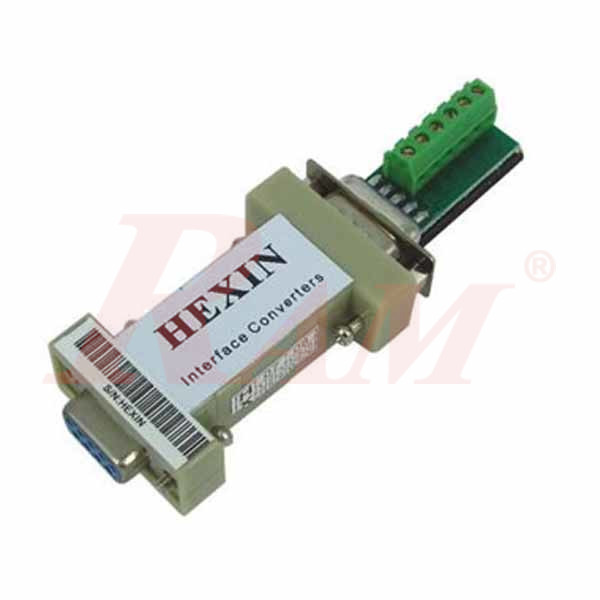

HXSP-485A - RS232 to RS485 Converter

https://www.ram-e-shop.com/web/image/product.template/5758/image_1920?unique=9bdf45e

350.00 EGP 350.0 EGP 350.00 EGP

350.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RS232TORS485.CONVERTER

  • Bi-directional connector convert between RS-232 and RS-485
  • Port-Powered, no need for extra power supply
  • Support 0~115200bps baud rate
  • Low power consumption

Specification & Feature

Standard

Compliant with EIA RS-232, RS-485 standards

Interface

RS-232: DB9 interface

RS-485: Industrial terminal block

Baud Rate

0~115200bps

Serial port

1 port RS-232 DB9, 1 port RS-485(DB9 with block)

RS-232 signal

TXD, RXD, GND

RS-485 signal

485+, 485-, GND

Distance

RS-232: 5m

RS-485: 1200m

Working mothod

asynchronous, point-to-point or multi-point, 2-wire half-duplex

Transmission medium

Ordinary Line, twisted pair cable or Shielded Wire

Communication protocol

Transparent

Direction control

automatic data flow control technology which can detect and control data transmission direction automatically

Power

No power supply, Obtain power from TXD, RTS, DTR signals of RS-232 serial port

Environment

Operating temperature: -20~70℃

Storage temperature: -25~85℃

Relative humidity: 5%~95%(no condensation)

Shell

plastic

Download

DATASHEET
