Raspberry Pi HQ Camera 12.3MP IMX477 - Official

https://www.ram-e-shop.com/web/image/product.template/8726/image_1920?unique=60b741f

3,500.00 EGP 3500.0 EGP 3,500.00 EGP

3,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RPI.CAM.HQ.12.3M

The High Quality Camera Module is a camera sensor designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses for use with the Raspberry Pi single board computer line. It offers higher resolution (12 megapixels, compared to eight megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2. The 12.3 megapixel Sony IMX477 sensor features a 7.9mm diagonal image size and back-illuminated sensor architecture with adjustable back focus. Additionally, this module features an included tripod thread just adjacent to the ribbon cable connector.


The CGL 6mm CS-mount and 16 mm C-mount lenses (in the related products section below) are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses in the documents tab. Additional adapters can also be found for use with professional DSLR lenses.


Note: A lens is required for this camera module and one is not included.

12.3 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus. Available with your choice of C/CS mount or M12 mount.

Specifications

  • Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9mm sensor diagonal, 1.55μm × 1.55μm pixel size
  • Ouput: RAW12/10/8, COMP8
  • Back focus: Adjustable (12.5mm – 22.4mm)
  • Lens standards: C-mount, CS-mount (C-CS adapter included)
  • IR cut filter: Integrated
  • Ribbon cable length: 200mm
  • Tripod mount: 1/4in. - 20

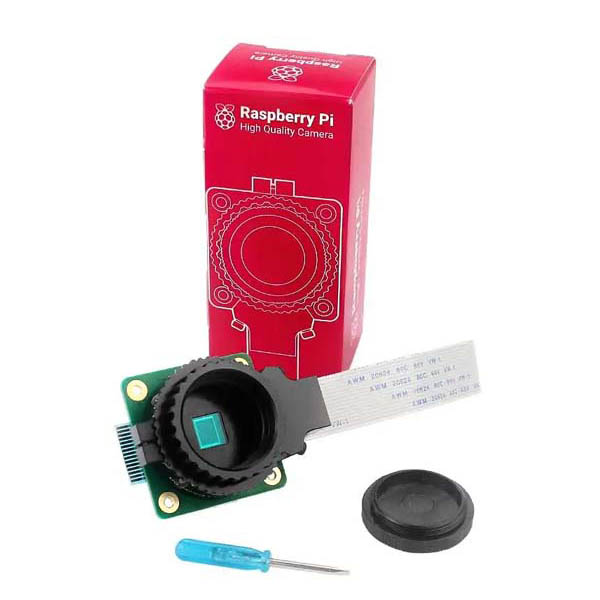

Package includes:

  • 1 x Official Raspberry Pi HQ Camera Module
  • 1 x CS-mount adapter (normally mounted on the HQ Camera module
  • 1 x Dust cap
  • 1 x FFC Cable (200mm)
