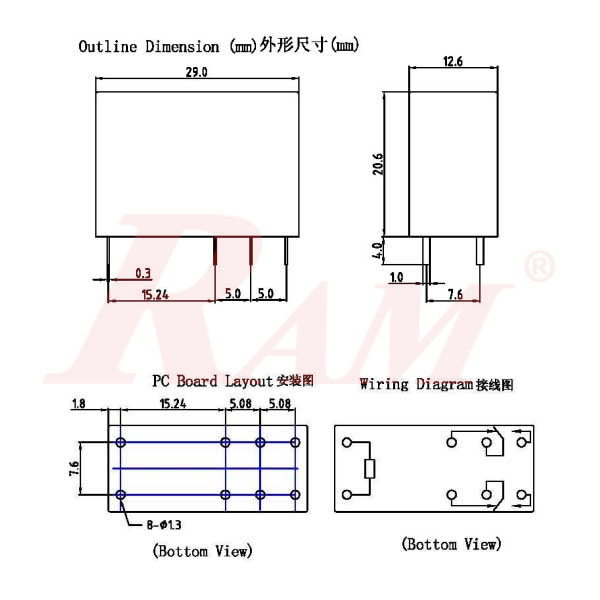

Re6-Relay 12V 8pin 5A (Double Contact)

https://www.ram-e-shop.com/web/image/product.template/6315/image_1920?unique=8c5f8e4

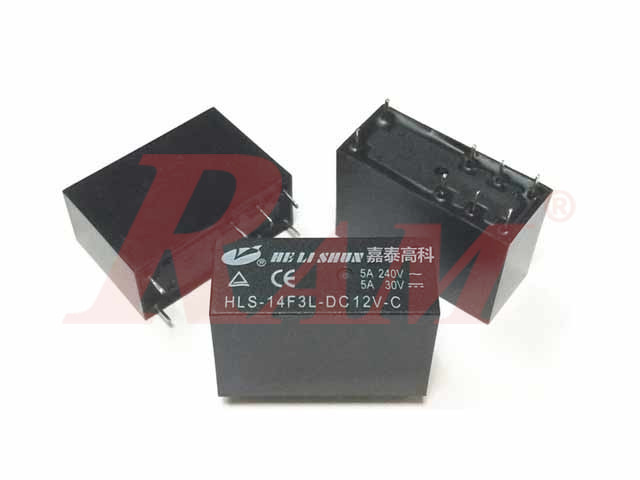

HLS-14F3L-DC12V-C

30.00 EGP 30.0 EGP 30.00 EGP

30.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RE6.BLUE

CONTACT DATA:

Contact Form 1A /1C
Contact Material Ag Alloy
Contact Ratings 5A 240VAC/5A 30VDC
Max Switching Voltage 250VAC/110VDC
Max Switching Current 5A
Max Switching Power 1250VA/150W
Initial Contact Resistance 100m Ω Max at6VDC 1A
Life Expectancy Electrical 100,000 Operations (rated load)
Life Expectancy Mechanical 10,000,000 Operations (no load)

GENERAL DATA :

Insulation Resistance 1000M Ω Min at500VDC
Dielectric Strength Between Open Contacts 1000VAC 50-60HZ( 1 minute)
Dielectric Strength Between Contacts And Coil 5000VAC 50-60HZ( 1 minute)
Operate Time 15ms max
Release Time 8ms max
Ambient Temperature -30 ℃ to+70 ℃
Shock Resistance Malfunction: 10G

COIL DATA: (@20 ℃ ):
