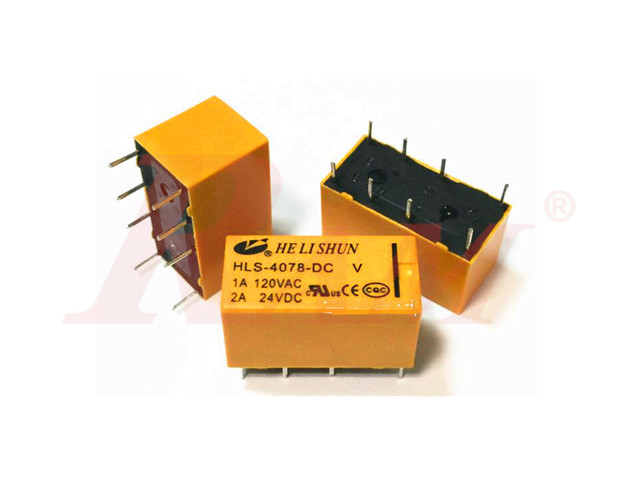

Re23-Relay 5V-1A 8pin Yellow

https://www.ram-e-shop.com/web/image/product.template/6384/image_1920?unique=8c5f8e4

HLS-4078-DC5V

30.00 EGP 30.0 EGP 30.00 EGP

30.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RE23

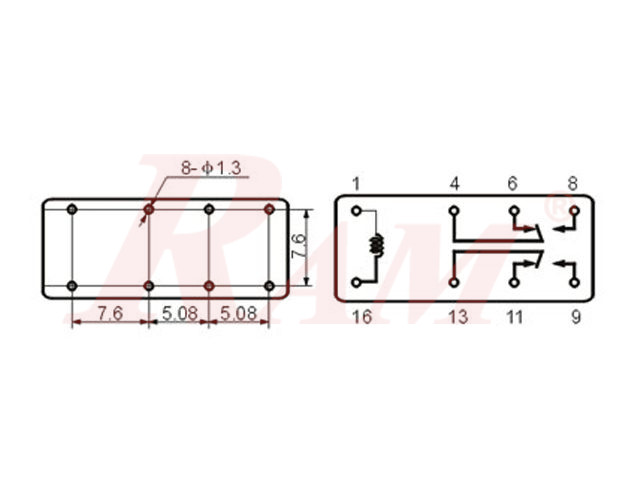

  • Dimensions: 20 x 9.9 x 12.2 mm
  • Relay Coil Voltage: 5Vdc
  • Contact Data:
    • 1A 120VAC
    • 2A 24VDC

CONTACT DATA :

Contact Form

2C

Contact Material

Ag+Au

Contact Ratings

1A 120VAC; 2A/24VDC

Max Switching Voltage

240VAC/60VDC

Max Switching Current

2A

Max Switching Power

120VA/30W

Initial Contact Resistance

50m Ω Max at 6VDC 1A

Life Expectancy Electrical

100,000 Operations(rated load)

Life Expectancy Mechanical

10,000,000 Operations(no load)

GENERAL DATA :

Insulation Resistance100M Ω Min at500VDC
Dielectric Strength Between Open Contacts500VAC 50-60HZ( 1 minute)
Dielectric Strength Between Contacts And Coil1000VAC 50-60HZ( 1 minute)
Operate Time6ms max
Release Time4ms max
Ambient Temperature-30 ℃ to+70 ℃
Shock ResistanceMalfunction: 10G
 Destruction: 15G
Vibration Resistance10-55Hz,1.5mm double amplitude
Ambient humidity40-85% RH
WeightApprox 5g
Safety StandardUL CE CQC

COIL DATA: (@20 ℃ )

Download

Datasheet
