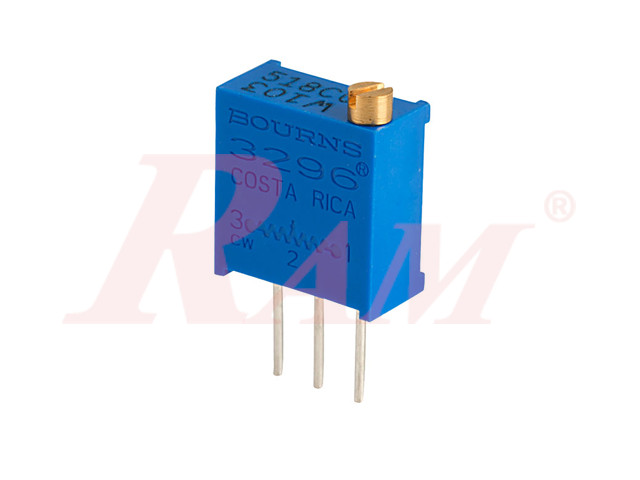

Potentiometer 1MΩ (W105) 1/2W Vertical Square Cermet

https://www.ram-e-shop.com/web/image/product.template/6266/image_1920?unique=f336e26

Trimmer Potentiometer 3296 1Mohm

7.00 EGP 7.0 EGP 7.00 EGP

7.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: POT.TH.1M

Features:

  • Base Product Number: 3296
  • Power (Watts): 0.5W, 1/2W
  • Adjustment Type: Top Adjustment
  • Size / Dimension: Rectangular Face 9.53mm x 4.83mm
  • High-Accuracy
  • Sealed Against Moisture and Dirt
  • Linear Type with Multi-Turn
  • 25 Turn
  • Resistive Material: Cermet type
  • Absolute Minimum Resistance: 2ohms or 1% maximum
  • Insulation Resistance: 1000Mohm minimum at 500VDC
