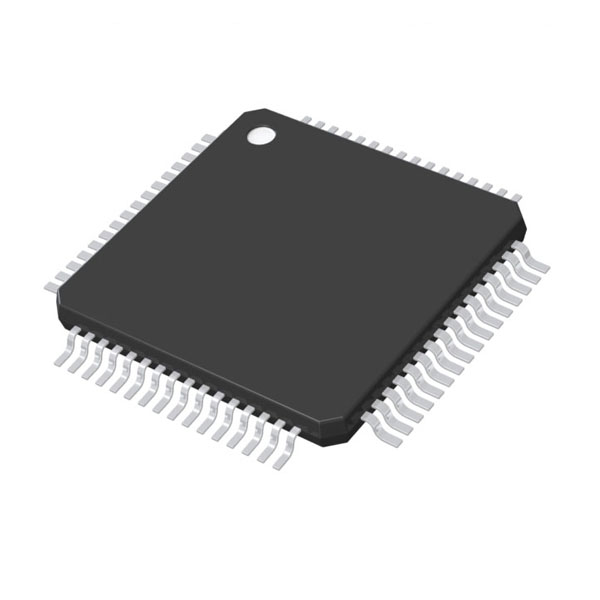

PIC18F67K22-I/PT

https://ram-electronics.odoo.com/web/image/product.template/8817/image_1920?unique=6d119cf

275.00 EGP 275.0 EGP 275.00 EGP

275.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: PIC18F67K22.I/PT

Features

  • nanoWatt XLP technology for low sleep, RTCC, LCD and WDT currents
  • Low-Power BOR
  • Ultra Low-Power Wake-Up
  • Fast Wake-Up
  • Low Input Leakage Currents
  • Up to 16 MIPS Performance
  • Operating Speed up to 64 MHz
  • Operating Voltage Range: 1.8 to 5.5V
  • 8 X 8 Single-Cycle Hardware Multiplier
  • Three Internal Oscillators: 31 kHz, 500 kHz, 16 MHz
  • Charge Time Measurement Unit for mTouch Sensing
  • A/D Converter
  • 12-bit Resolution
  • 16 Channels
  • Ten CCP/ECCP Modules
  • Eleven 8/16-bit Timer/Counter Modules
  • Three Analog Comparators
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Two Master Synchronous Serial Port Modules

Parametrics

Program Memory Size (KB)128
RAM (bytes)3862
Data EEPROM (bytes)1024
Pin Count64
Operation Voltage Max.(V)5.5
Operation Voltage Min.(V)1.8
Timers6 x 8-bit - 5 x 16-bit
Max ADC Resolution (bits)12
ADC Channels16
Zero Cross DetectNo
Number of Comparators3
SPI2 -SPI
I2C2 -I2C
Stand alone PWM0
Low PowerYes
Numerically Controlled Oscillator (NCO)0
Data Signal Modulator (DSM)0
