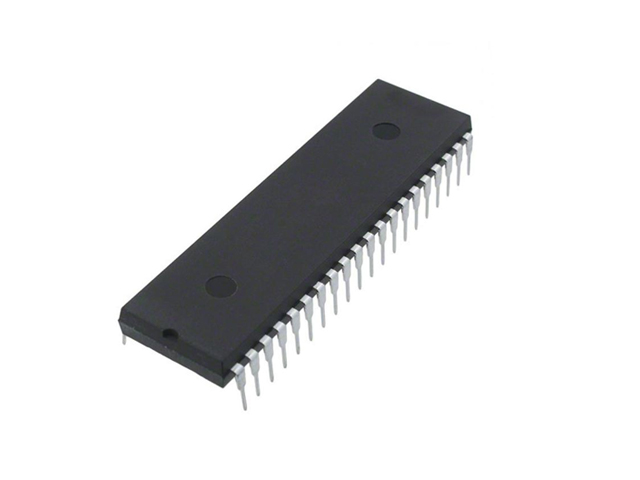

PIC16F877A-I/P
Internal Reference:
PIC16F877A.IP
Features
- 2 PWM 10-bit
- 256 Bytes EEPROM data memory
- ICD
- 25mA sink/source per I/O
- Self Programming
- Parallel Slave Port
Parametrics
| Program Memory Type | Flash |
| Program Memory Size (KB) | 14 |
| CPU Speed (MIPS/DMIPS) | 5 |
| Data EEPROM (bytes) | 256 |
| Timers | 2 x 8-bit - 1 x 16-bit |
| Stand alone PWM | 0 |
| Number of ADCs | 1 |
| ADC Channels | 8 |
| Max ADC Resolution (bits) | 10 |
| Number of Comparators | 2 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 125 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 2 |
| Pin Count | 40 |
| Low Power | No |
| I2C | 1 -I2C |
