Metal Switch 16mm Waterproof Metal with POWER Symbol Red LED


125.00 EGP 125.0 EGP 125.00 EGP

125.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: PB.16.M.POWER

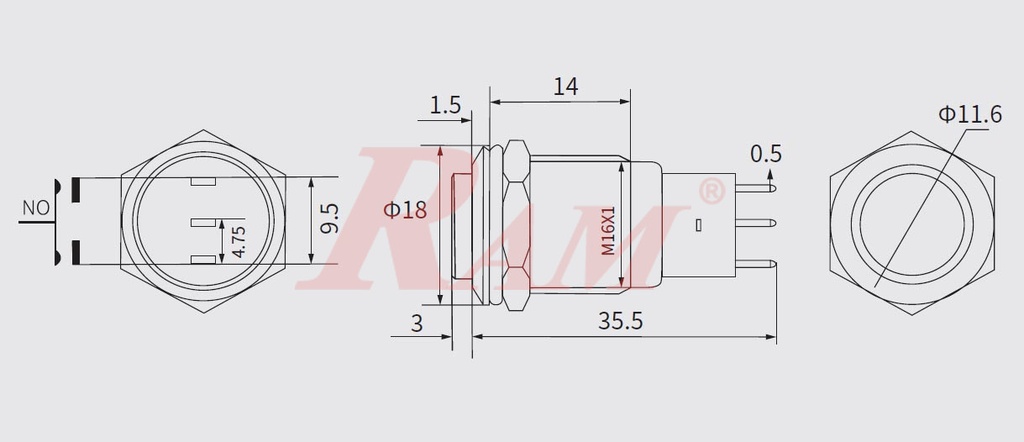

These chrome-plated metal buttons are rugged and waterproof and look really good while doing it! Simply drill a 16mm hole into any material up to 1/2″ thick and you can fit these in place, there’s even a rubber gasket to keep any water out of the enclosure.

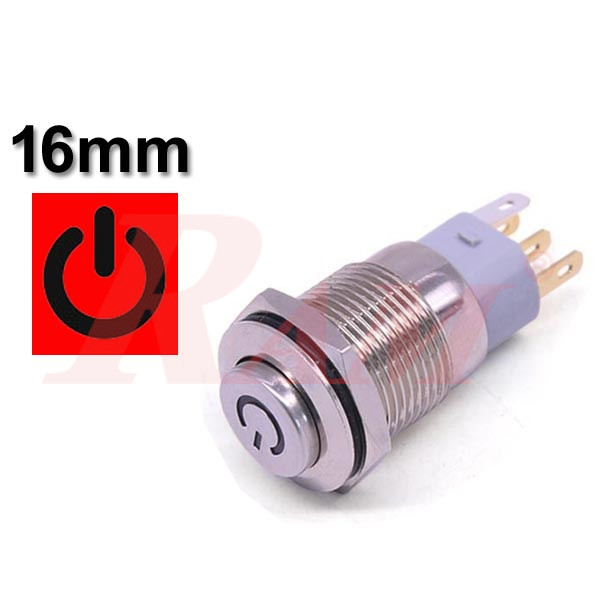

On the front of the button is a flat metal actuator, surrounded by a power symbol Red plastic LED ring. On the back, there are 3 contacts for the button (common, normally open, and normally closed) and 2 for the LED ring (+ and -). Connect 12V to the LED to have it light up nicely, there’s a built-in resistor! If you want to use this with a higher voltage, for 24V, simply add a 470-ohm resistor in series with the LED connection to keep the LED current at around 20mA.

  • Metal self-locking pushbutton switch
  • Install Diameter φ16mm
  • Switch rating: 3A / 220VDC
  • Switch contacts: 1 NO, 1 NC
  • Material: Chrome-plated brass
  • Grade: IP67 IK09
  • Contact resistance: < 50 mOhm
  • Insulation resistance: > 1000 Mohm
  • Temperature: -20 C to +55 C
  • Mechanical life: > 500,000
  • Electrical life: > 50,000
  • Panel thickness: 1-13mm
  • Operating pressure: 1.5 – 2.5 N
  • Operating stroke: 2mm
  • Lamp-rated voltage: 12V
