OLED 1.3" 4pin LCD Display Module I2C IIC Communicate


OLED 1.3 inch 128x64 Pixel

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: OLED.1.3.4PIN

Product Description

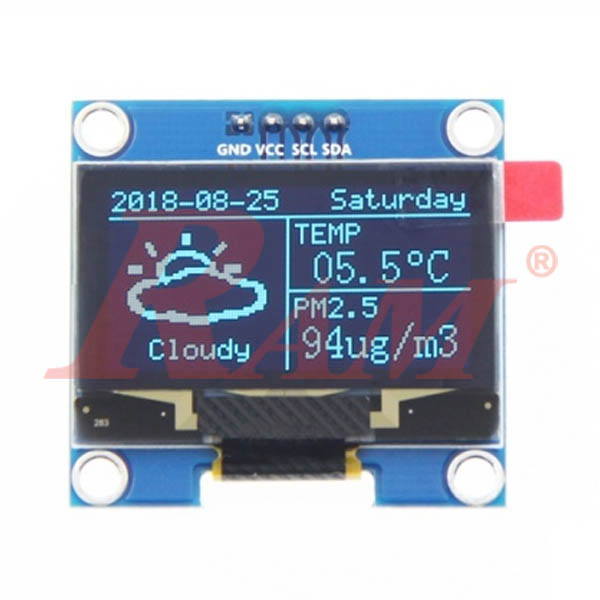

  • 1.3 inch OLED screen with black and white or black and blue color display
  • 128x64 resolution for clear display and high contrast
  • Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
  • Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required
  • With IIC bus, only a few IOs can be used to light up the display
  • Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
  • Military-grade process standards, long-term stable work
  • Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
  • Provide underlying driver technical support

Product Parameters

Display Colorwhite/blue

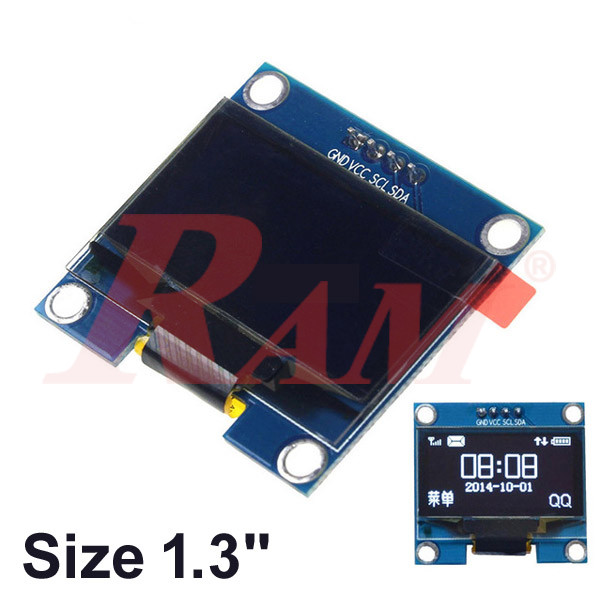

Screen Size 1.3 inch
Screen TypeOLED
Driver ICSH1106
Resolution128*64 (Pixel)

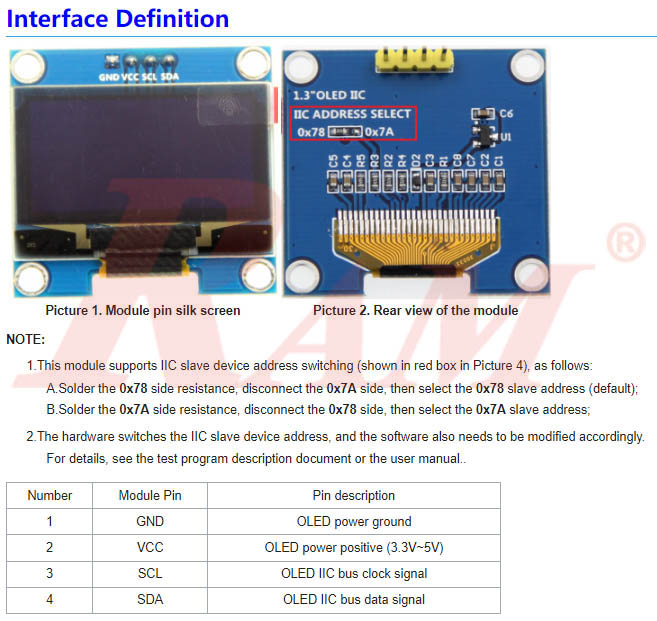

Module InterfaceIIC interface

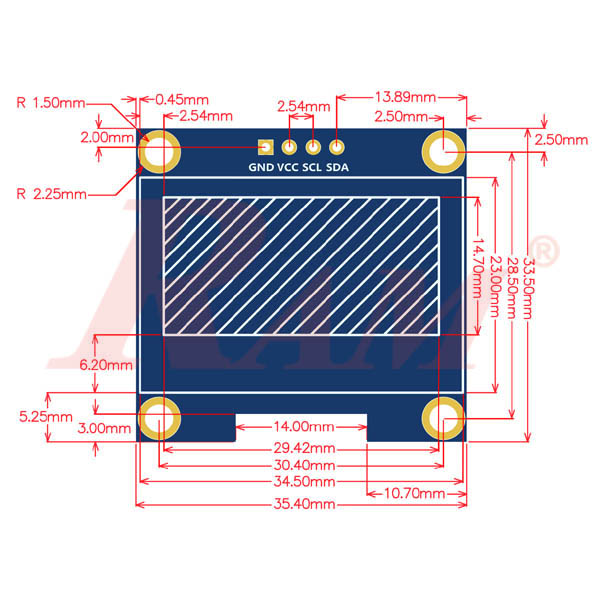

Active Area 29.42x14.7 mm
Touch Screen TypeNo touch screen
Touch ICNo IC
Module PCB Size33.50x35.40 mm
Visual Angle>160°
Operating Temperature-20℃~60℃
Storage Temperature-30℃~70℃
Operating Voltage3.3V~5V
Power ConsumptionTBD
Rough Weight(Package containing)10g
