OLED 0.96" 4pin LCD Display Module I2C IIC Communicate

https://www.ram-e-shop.com/web/image/product.template/7772/image_1920?unique=30a2432

OLED 0.96 inch 128x64 Pixel

175.00 EGP 175.0 EGP 175.00 EGP

175.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: OLED.0.96.4PIN

Product Description

  • High resolution: 128x64 (have the same resolution as 12864, high PPI)
  • Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)
  • Ultra-low power consumption: it's 0.06w in normal conditions (far less than TFT display)
  • Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC
  • IIC interface and only requires 2 IOs to light up easily
  • The range of working temperature is industrial (-20°C~70°C)
  • Military-grade process standards, long-term work steadily
  • Provide rich multi-platform routines and the technology support of underlying driver

Product parameters

Size0.96 inch
TypeOLED
OLED driver chipSSD1306
Resolution128*64 Pixel
Module interfaceIIC,4PIN

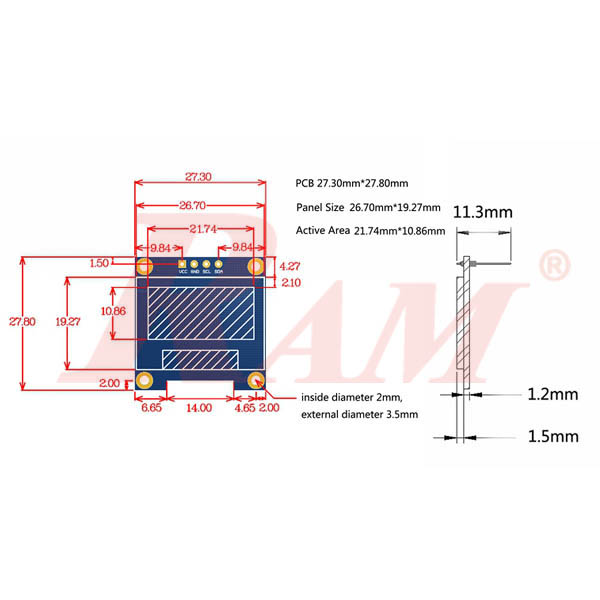

Effective display area21.744 x 10.864 mm
Module size27.3 x 27.8 mm
Field of View>160°
Working temperature-20℃~60℃
storage temperature-30℃~70℃
Working voltage3.3V / 5V
power dissipationTBD
Product weight8g

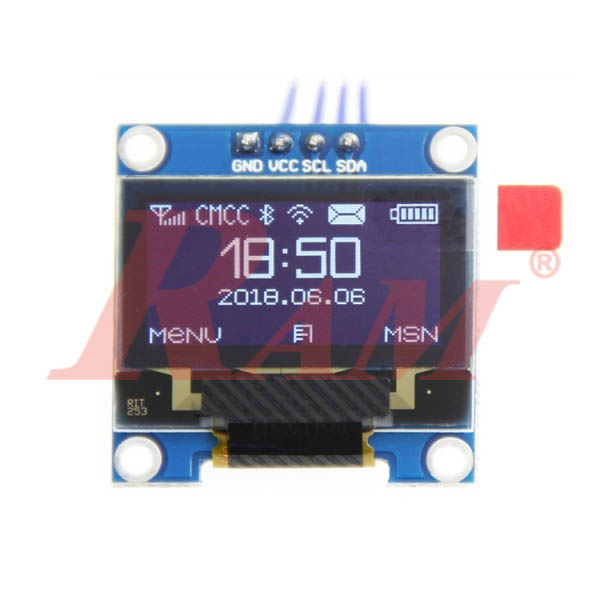

Interface definition

PINlabelPin description
1GNDOLED GND
2VCCOLED VCC input(3.3V~5V)
3SCLOLED clock signal of IIC bus
4SDAOLED data signal of IIC bus


Download

DATASHEET & EXAMPLE CODE
