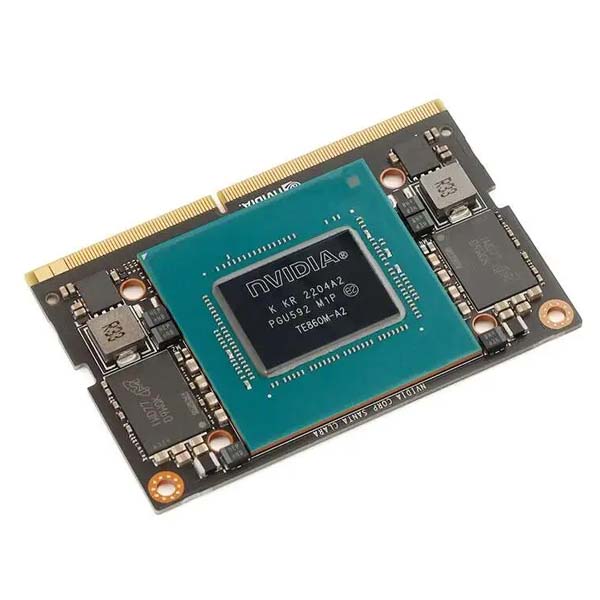

NVIDIA® Jetson Xavier™ NX Module 16GB - Seeed Studio

https://ram-electronics.odoo.com/web/image/product.template/8732/image_1920?unique=9b97f50

Volta GPU + Carmel CPU + 16 GB LPDDR4x + 16 GB eMMc

28,000.00 EGP 28000.0 EGP 28,000.00 EGP

28,000.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: NVIDIA.SEEED.16GB

The module is an ideal tool for working with artificial intelligence. The Jetson Xavier NX allows to run neural networks and data processing from multiple sensors in parallel. Native cloud support makes it even easier to create and implement Artificial Intelligence applications on edge devices. The module supports all popular platforms SI.

Jetson Xavier NX 16GB delivers up to 21 TOPS for running modern AI workloads, consumes as little as 10 watts of power, and has a compact form factor smaller than a credit card. It can run modern neural networks in parallel and process data from multiple high-resolution sensors, opening the door for embedded and edge computing devices that demand increased performance but are constrained by size, weight, and power budgets.

Features

  • Compact size SoM with advanced AI performance: 6 TFLOPS (FP16), 21 TOPS (INT8) performance more than 10X the performance of Jetson TX2
  • Low power consumption: Cost selectable as 10W to 15W
  • Supports entire NVIDIA Software Stack: Compatible NVIDIA software for AI application development and deployment
  • Integral hardware design: Easy to build, deploy, and manage AI at the edge
  • Flexible and scalable platform: Reduce development costs

Specifications

AI Performance21 TOPS (INT8)
GPUNVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores
Max GPU Frequency1100 MHz
CPU6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Max CPU Frequency1900 MHz
Memory16 GB 128-bit LPDDR4x @ 59.7 GB/s
Storage16 GB eMMC 5.1
Power10 W | 15 W | 20 W
PCIe1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s *
CSI CameraUp to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
Video Encode2x 4K @ 60 | 4x 4K @ 30 | 10x 1080p @ 60 | 22x 1080p30 (H.265/H.264)
Video Decode2x 8K @ 30 | 6x 4K @ 60 | 12x 4K @ 30 | 22x 1080p @ 60 | 44x 1080p @ 30 (H.265) 2x 4K @ 60 | 6x 1080p @ 60 | 22x 1080p @ 30 (H.264)
Display2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator2x NVDLA Engines
DLA Max Frequency1100 MHz
Vision Accelerator2x PVA
Networking10/100/1000 Base-T Ethernet
USB1xUSB 3.1 (10 Gbps) | 3xUSB 2.0
Other IOs1x SDIO / 2x SPI / 3x UART / 2x I2S / 4x I2C / 1x CAN / GPIOs
Dimensions45 mm x 69.6 mm
Connector260 pin SO-DIMM connector
