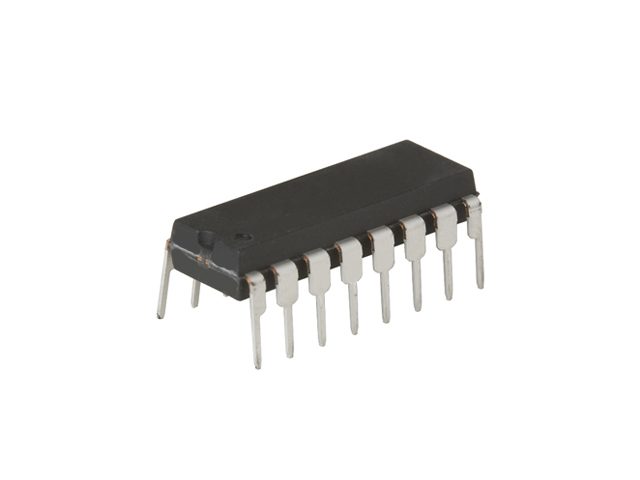

MCP2515-I/P
Stand-Alone CAN Controller With SPI Interface
Internal Reference:
MCP2515
The MCP2515 is a second generation stand-alone CAN controller. It is pin and function compatible with the MCP2510 and also includes upgraded features like faster throughput, databyte filtering, and support for time-triggered protocols.
Parametrics
| Bitrate Max [MBits/s] | 1 |
| CAN Controllers | 1 |
| Internal CAN Clock | No |
| LPM Current Max [uA] | 0 |
| Message RAM [KB] | 0 |
| Operating Voltage Min. [V] | 2.7 |
| Operating Voltage Max. [V] | 5.5 |
| Rx Buffers | 2 |
| SPI Interface | Yes |
| Serial Bus Speed [MHz] | 10 |
| Standby Current Max [uA] | 0 |
| Operating Temperature Min. [°C] | -40 |
| Operating Temperature Max. [°C] | 125 |
| Time Stamp (Bits) | 0 |
| TX Buffers | 3 |
| TX Event FIFO | 0 |
| TX Queue | 0 |
| CAN FD | No |
