LMT101ENMFWD-ACD TFT LCD Module – 10.1" HDMI Display with Capacitive Touch - TOPWAY

LMT101ENMFWD-ACD TFT LCD Module – 10.1 Inch HDMI Display with Capacitive Touch

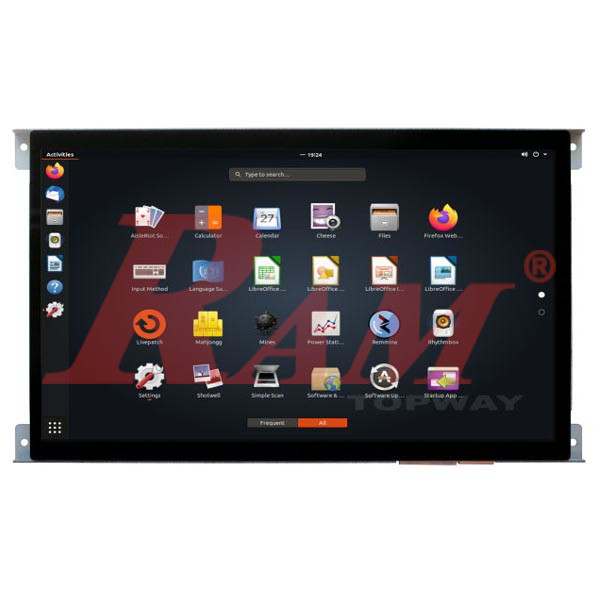

The LMT101ENMFWD-ACD is a 10.1-inch TFT LCD module designed for HDMI video input applications.

It integrates a capacitive touch panel and supports wide input voltage (11–26 V), making it ideal for industrial displays, embedded systems, kiosks, control panels, and monitoring equipment.

10.1 inch tft lcd monitor with HDMI interface, easy connection with IPC, Raspberry Pi and Arduino.

Key Features

• 10.1-inch TFT LCD display
• HDMI video input
• Capacitive Touch Panel (USB interface)
• Wide input voltage range 11–26 V
• High resolution 1024 × 600
• LED backlight with 30,000 h lifetime
• Industrial-grade temperature range
• Compact and robust design

Display Specifications

• Display Size: 10.1 inch (diagonal)
• Resolution: 1024 × 600 pixels
• Color Depth: 16.7M colors (24-bit)
• Pixel Configuration: RGB Stripe
• Pixel Pitch: 0.2175 × 0.2088 mm
• Display Mode: Transmissive / Normal White
• Viewing Direction:
  • 6 o’clock (gray-scale inverse)
  • 12 o’clock (color scale)
• Active Area: 222.72 × 125.28 mm
• Outline Dimensions: 251.0 × 145.0 × 20.7 mm
• Backlight: White LED

Optical Characteristics

• Viewing Angle (CR ≥ 10):
  • Left / Right: 80° (typ.)
  • Up: 75° (typ.)
  • Down: 80° (typ.)
• Contrast Ratio: 500:1 (typ.)
• Response Time:
  • Rise (Tr): 9 ms (typ.)
  • Fall (Tf): 7 ms (typ.)
• Luminance: 300 cd/m² (typ.)
• Luminance Uniformity: 80% (typ.)

Touch Panel

• Touch Type: Capacitive Touch Panel (CTP)
• Interface: USB (D+ / D-)
• Touch Supply Voltage: 5.0 V (4.5 – 5.5 V)
• Operating Current: 26 mA (typ.)

Electrical Specifications

LCD Panel

• Operating Voltage:
  • Typical: 12 V
  • Range: 11 – 26 V
• Power Consumption:
  • Typical: 350 mA
• Backlight Lifetime:
  • 30,000 hours (brightness to 50%)

Touch Panel

• Supply Voltage: 5.0 V
• Current Consumption: 26 mA (typ.)

Interfaces & Connectivity

Power Input (K1)

• Dual VDD / GND pins
• Supports 11–26 V DC input

HDMI Interface (K2)

• Standard HDMI Type-A
• Hot-plug not supported (connect before power-on)

Touch Panel Interface (K3)

• USB interface for capacitive touch controller
• 5.0 V power supply

Environmental Conditions

• Operating Temperature: −20°C to +70°C
• Storage Temperature: −30°C to +80°C
• Operating Humidity: 10% – 90% RH (non-condensing)

Typical Applications

• Industrial HMI displays
• Embedded Linux / Windows systems
• Control panels & kiosks
• Measurement & monitoring systems
• Smart terminals

Download

• Datasheet
