LMT070DAMFWA-NFD TFT LCD Module – 7.0 Inch HDMI / VGA Display with Capacitive Touch

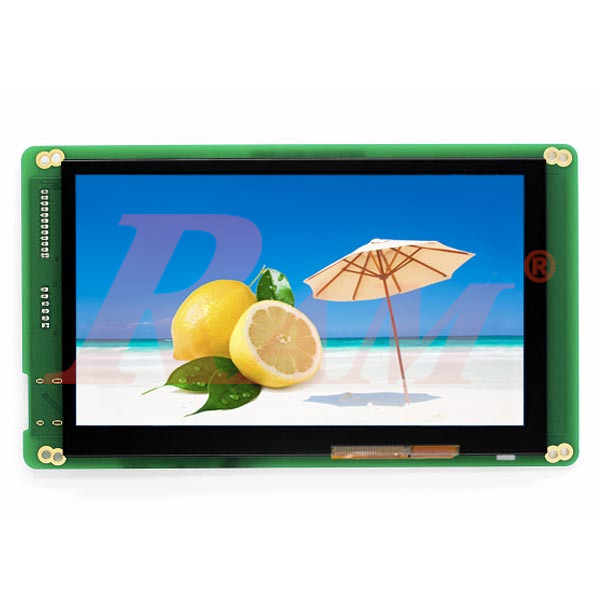

The LMT070DAMFWA-NFD is a 7.0-inch TFT LCD module designed for PC-type video input applications.

It supports both HDMI and VGA signal interfaces, combined with a capacitive touch panel, making it suitable for industrial displays, control panels, embedded systems, kiosks, and monitoring equipment

Key Features

• 7.0-inch TFT LCD panel
• HDMI & VGA dual video input
• Capacitive Touch Panel (USB interface)
• High resolution 1024 × 600
• Wide viewing angle
• LED backlight
• Anti-scratch HC surface treatment
• Industrial-grade reliability

Display Specifications

• Display Size: 7.0 inch (diagonal)
• Resolution: 1024 × 600 pixels
• Color Depth: 16.7M colors (24-bit)
• Pixel Configuration: RGB Vertical Stripe
• Pixel Pitch: 0.1506 × 0.1432 mm
• Display Mode: Transmissive / Normal Black
• Viewing Direction: ALL
• Active Area: 154.21 × 85.92 mm
• Outline Dimensions: 193.0 × 112.0 × 18.3 mm (max)
• Backlight: White LED
• Surface Treatment: HC (Hard Coating)

Optical Characteristics

• Viewing Angle (CR ≥ 10):
  • Up / Down / Left / Right: 85° (typ.)
• Contrast Ratio: 800:1 (typ.)
• Response Time:
  • Rise (Ton): 25 ms (typ.)
  • Fall (Toff): 35 ms (max.)
• Luminance: 272 cd/m² (typ.)
• NTSC Color Gamut: 50% (typ.)
• Luminance Uniformity: 75% (typ.)

Touch Panel

• Touch Type: Capacitive Touch Panel (CTP)
• Interface: USB (D+ / D-)
• Touch Supply Voltage: 5.0 V
• Operating Current: 21.8 mA (typ.)

Electrical Specifications

LCD Panel

• Operating Voltage:
  • Typical: 12.0 V
  • Range: 11.5 – 12.5 V
• Power Consumption:
  • Typical: 215 mA @ 12 V

Touch Panel

• Supply Voltage: 5.0 V (4.8 – 5.2 V)

Interfaces & Connectivity

Power Input (K1)

• Supply Voltage: 12.0 V
• Multiple VDD and GND pins for stable power

HDMI Interface (K2)

• Standard HDMI Type-A
• Supported input resolutions:
  • 800 × 600 @ 60Hz
  • 1024 × 600 @ 60Hz
  • 1024 × 768 @ 60Hz
• Hot-plug not supported (must connect before power-on)

VGA Interface (K3)

• Analog RGB + HS / VS
• Same supported resolutions as HDMI
• Hot-plug not supported

Touch Controller Interface (K4)

• USB interface for capacitive touch panel
• 5.0 V power supply

Environmental Conditions

• Operating Temperature: 0°C to +50°C
• Storage Temperature: −10°C to +60°C
• Humidity: No condensation

Typical Applications

• Industrial control displays
• Embedded Linux / Windows systems
• HMI terminals
• Kiosk and POS displays
• Monitoring & measurement systems

Download

• Datasheet
