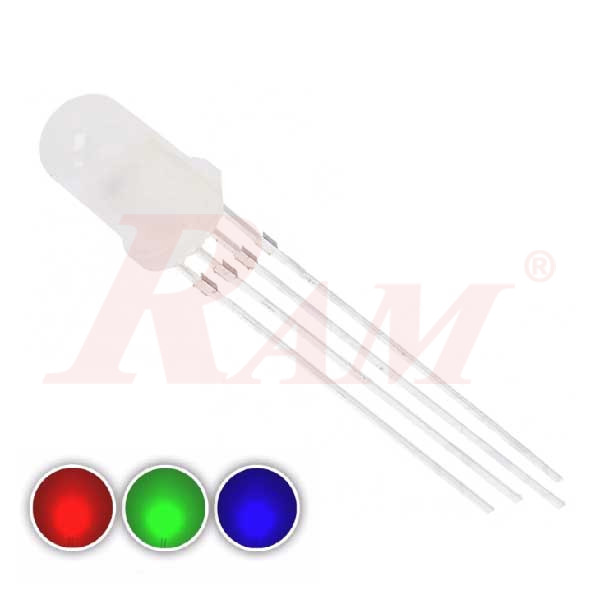

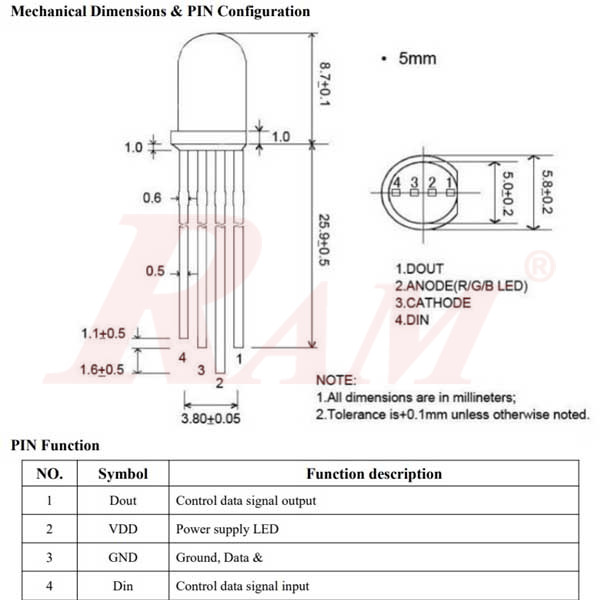

LED WS2812 Diffused 5mm RGB Programmable

LED 5mm WS2812 - Diffused

Feature:

WS2812D-F5_15mA is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5mm round shape of Through Hole Device. Its internal includes an intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receives data from the controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, but only depends on the speed of signal transmission. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becomes more simple circuit, small volume, convenient installation.

Applications

• Full-color module, Full color soft lights a lamp strip.
• LED decorative lighting, Indoor/outdoor LED video irregular screen.

Specifications:

• Type of diode: LED
• LED diameter: 5mm
• LED version: Tricolour
• LED color: RGB
• Wavelength of red color λd: 620...630nm
• Wavelength of green color λd: 515...530nm
• Wavelength of blue color λd: 465...475nm
• LEDs' features: Programmable
• Mounting: THT
• Operating temperature: -25...80°C
• No. of colors: 16.7 M
• Operating voltage:
• Red 1.8...2.2V
• Green 2.8...3.1V
• Blue 2.9...3.2V
