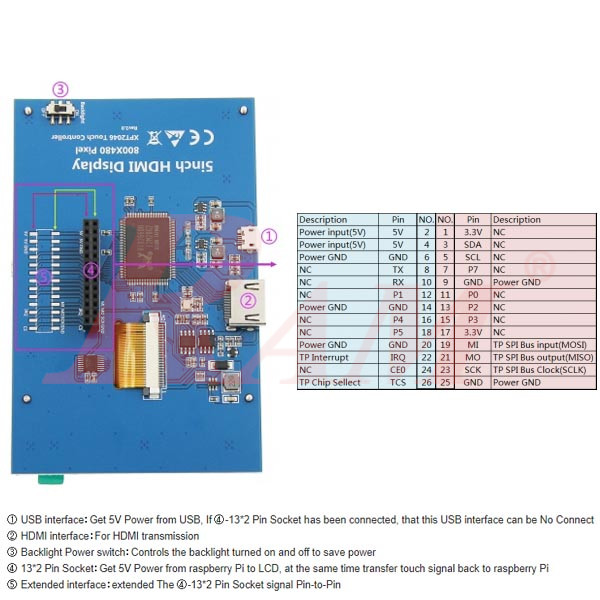

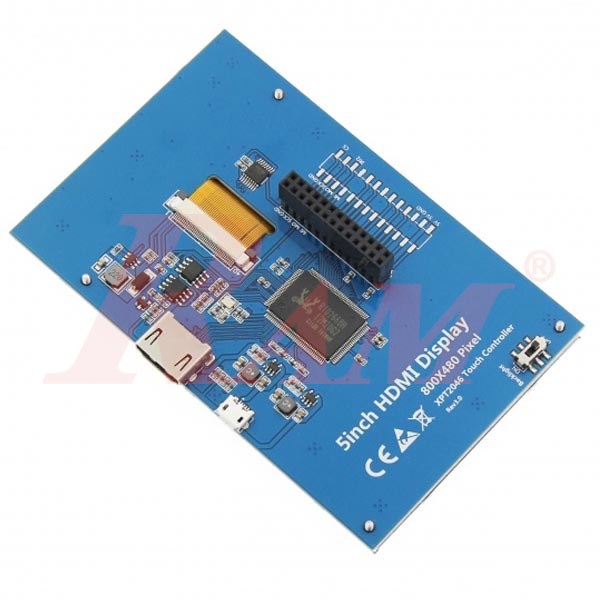

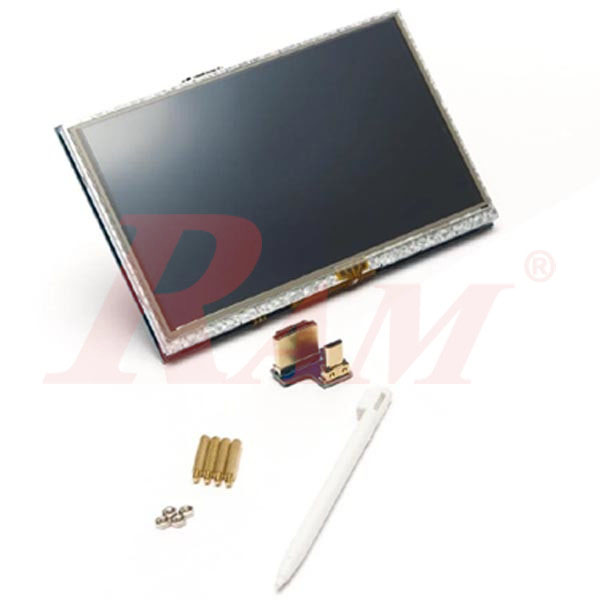

LCD HDMI 5 inch 800x480 Touch Screen

https://www.ram-e-shop.com/web/image/product.template/7085/image_1920?unique=30a2432

For Raspberry Pi, PC, or any HDMI output device

3,250.00 EGP 3250.0 EGP 3,250.00 EGP

3,250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: LCD.HDMI.5

Product Description

  • 5inch standard display, 800 × 480 resolution
  • With a resistive touch screen, support touch control
  • Support backlight control alone, the backlight can be turned off to save power

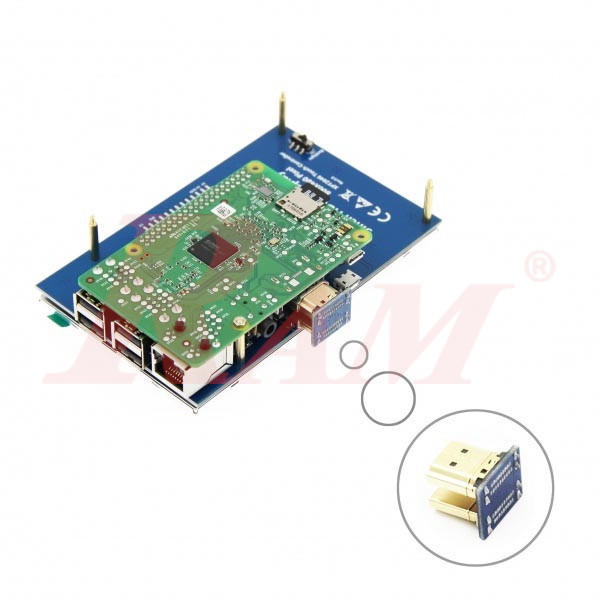

  • Supports standard HDMI interface input, compatible with and can be directly inserted with Raspberry Pi (3rd, 2nd, and 1st generation)
  • Can be used as a general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display (resolution need to be able to force output for 800 x480)

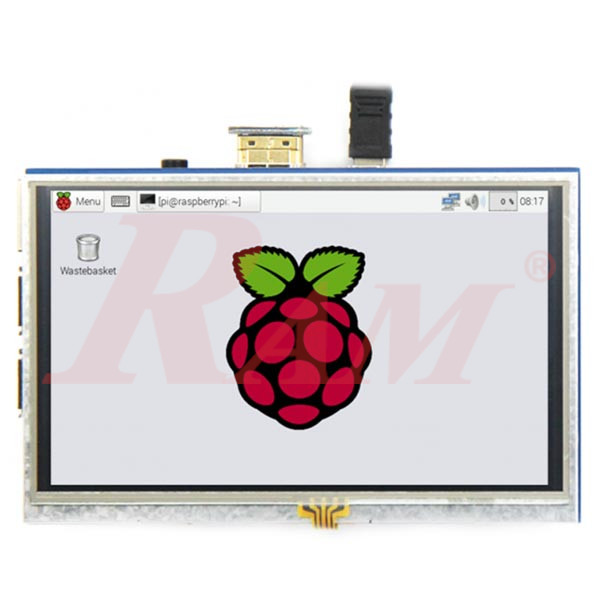

  • Used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi (no touch), win10 IOT (no touch)
  • Work as a PC monitor, support XP,win7, win8, win10 system (do not support touch)

Product Parameters

  • Size: 5.0 (inch)
  • Resolution: 800*480 dots
  • Touch: 4-wire resistive touch

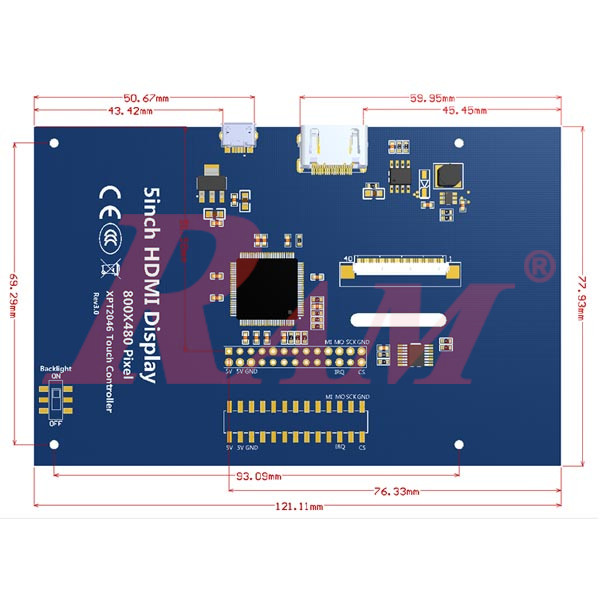

  • Product Size: 121.11*77.93(mm)
  • Package Size: 154*135*51 (mm)
  • Rough Weight(Package containing): 206(g)
  • Power Dissipation: 5Vdc 0.34A

Download

DATASHEET & EXAMPLE CODE
