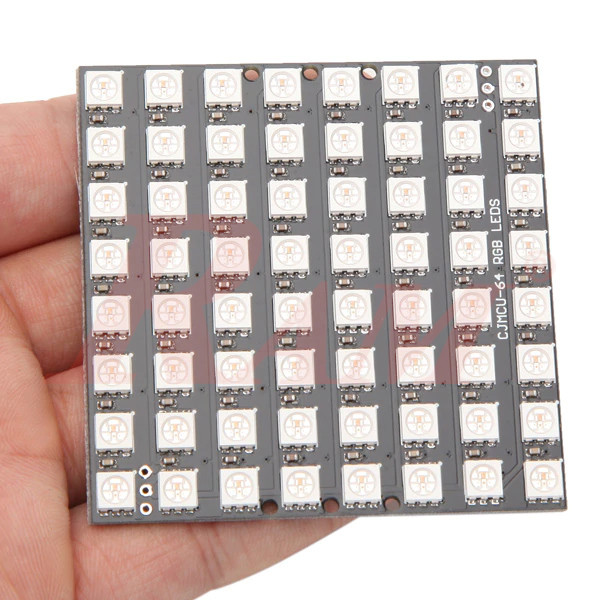

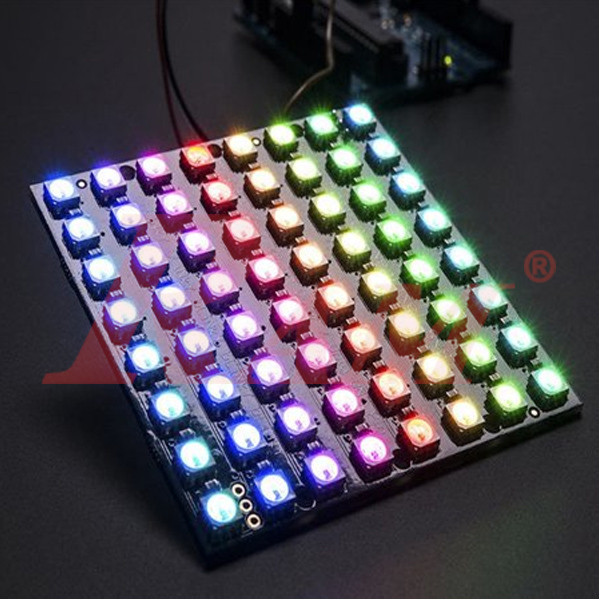

NeoPixel 64-bit WS2812 5050 RGB LED Driver Square Development Board

https://www.ram-e-shop.com/web/image/product.template/8123/image_1920?unique=263afec

175.00 EGP 175.0 EGP 175.00 EGP

175.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.WS2812.64.5050.SQUARE

Features

  • CJMCU Full-color 8x8 64-bit RGB LED WS2812 Module Board (Neo Pixel Matrix).
  • Cascading port transmission signal by a single line.
  • Built-in electric reset circuit and power lost reset circuit.
  • Built-in signal reshaping circuit, after wave reshaping to the next driver, ensures wave-form distortion does not accumulate.
  • Each pixel of the three primary colors can achieve 256 brightness display, completed 16777216 colors full-color display, and scan frequency not less than 400Hz/s. When the refresh rate is 30fps, the cascade number is not less than 1024 points. Send data at speeds of 800Kbps. Widely used for LED decorative lighting, Indoor/outdoor LED video irregular screen.

Specifications

  • Chip: WS2812 LED Color: RGB
  • LED Type: 5050 LED
  • Number: 64
  • Board Color: Black
  • Voltage: 5V
  • Size: Approx. 65mm x 65mm
  • Package includes: 1 x CJMCU 64 Bit WS2812 5050 RGB LED Driver Development Board (NeoPixel Matrix)
