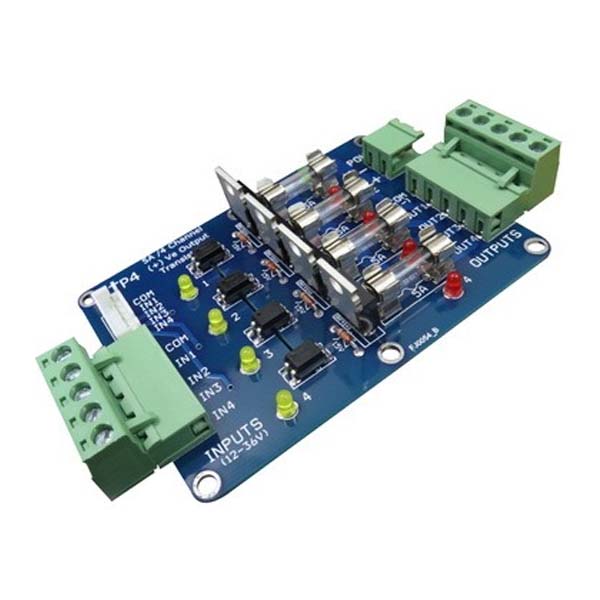

4 Channel PNP +ve O/P Transistor Interface 5A - TP4

4 Channel PNP +ve O/P Transistor Interface TP4

4 Channel PNP +ve O/P Transistor Interface 5A - TP4

4-channel positive output transistor module industrial control with opto-isolation.

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

This combination does not exist.

Pick up from RAM Store
Shipping: 2-3 Business Days

Internal Reference: KIT.TRANSISTOR.TP4

Features:

Input power voltage 12-36 VDC.
Output current +4A (Continuous) / +15A (Instantaneous).
4 output channels (MOSFET transistor).
Opto-isolated outputs for safety.
Fuse protection for each output.
Switching frequency 1000Hz.
Green LED indicator for power input.
Yellow LED indicator for each input.
Red LED indicator for each output.

TP4 Typical applications:

PLC Control.
Microcontroller applications.
Electromagnetic valves.
DC motor control.
Home intelligent control systems.
