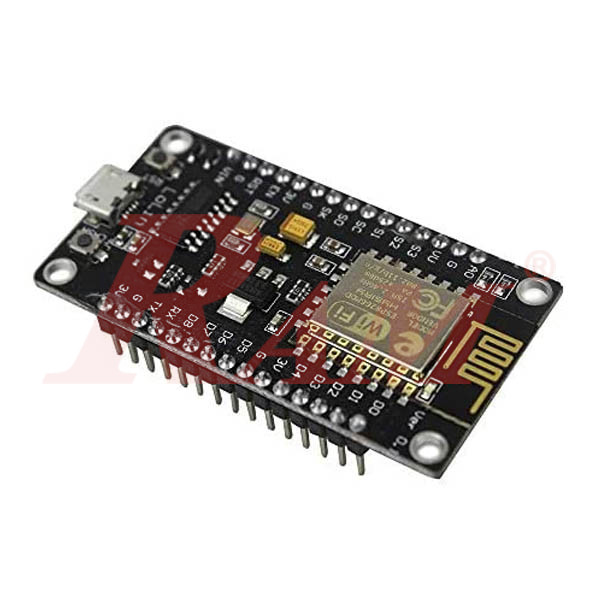

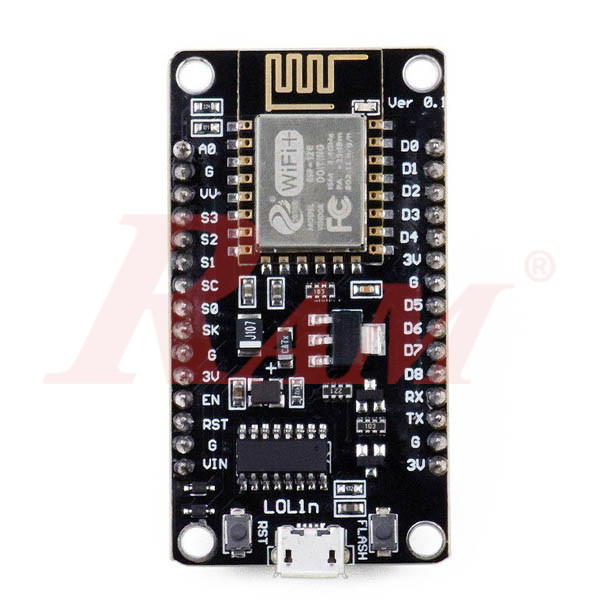

NodeMcu Lua V3 CH340 (ESP8266)
This is the famous NodeMCU which is based on ESP8266 WiFi SoC. This is version 3 and it is based on ESP-12E (An ESP8266 based WiFi module). NodeMCU is also an open-source firmware and development kit that helps you to prototype your IoT(Internet of Things) product within a few LUA script lines, and of course you can always program it with Arduino IDE.
Features
- Open-source
- Interactive
- Programmable
- Low-cost WiFi
- Simple & Smart
- WiFi-enabled
- Arduino-like hardware IO
- Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware
- Code like Arduino, but interactively in Lua script
- Nodejs style network API
- Event-driven API for network applications, which facilitates developers writing code running on a 5mm*5mm sized MCU in Nodejs style
- Greatly speed up your IoT application development process
- Input Voltage:
- 3.3V via 3.3V pin
- 5.0V via Vin or USB
Specifications:
The Development Kit based on ESP8266, integrates GPIO, PWM, IIC, 1-Wire, and ADC all in one board.
- Power your development in the fastest way combinating with NodeMCU Firmware!
- USB-TTL included plug&play

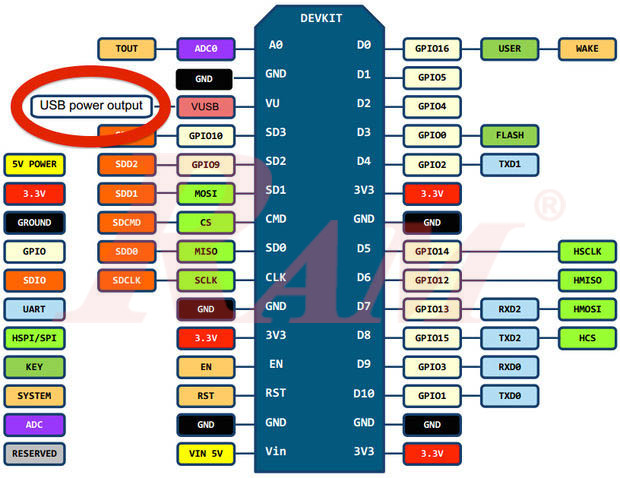

- 10 GPIO, every GPIO can be PWM, I2C, 1-wire
- PCB antenna
