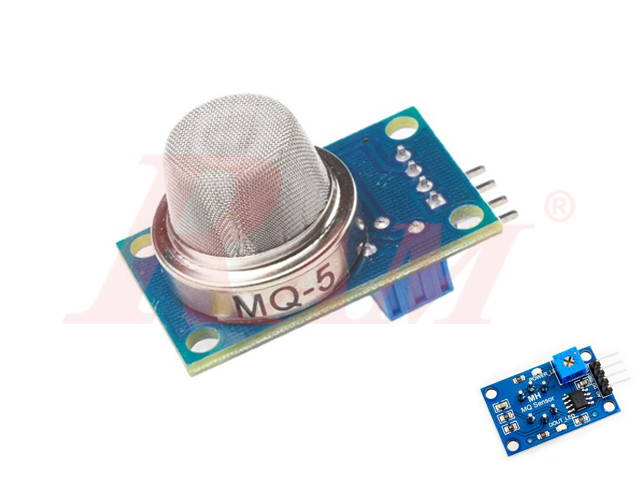

MQ-5 LPG, Natural Gas & Town Gas Sensor Module

https://www.ram-e-shop.com/web/image/product.template/7314/image_1920?unique=263afec

90.00 EGP 90.0 EGP 90.00 EGP

90.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.MQ5

Description

  • Sensitive for LPG, natural gas, coal gas
  • Fast response and recovery
  • Adjustable sensitivity
  • Signal output indicator
  • Output voltage boosts along with the concentration of the measured gases increases

MQ-5 gas sensor has high sensitity to Methane, Propane and Butane, and could be used to detect both Methane and Propane. The sensor could be used to detect different combustible gas especially Methane, it is with low cost and suitable for different application.

Specifications

  • Power: 2.5V ~ 5.0V
  • Dimension: 40.0mm * 21.0mm
  • Mounting holes size: 2.0mm

Features

  • Indication of the signal output.
  • Dual signal output (analog output, and TTL level output)
  • TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
  • 0 ~ 5V analog output voltage, the higher the concentration, the higher the voltage.
  • Liquefied petroleum gas, natural gas, city gas, better sensitivity.
  • Has a long life and reliable stability
  • Fast response and recovery characteristics
  • Operating voltage: DC 5 V

Application

  • Domestic gas leakage detector
  • Industrial Combustible gas detector
  • Portable gas detector
