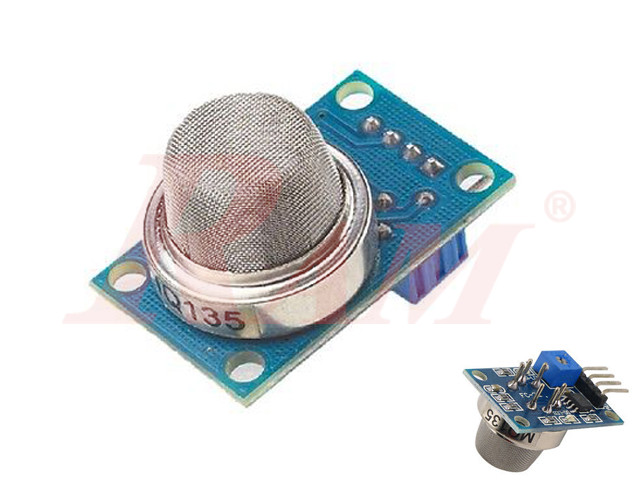

MQ-135 Sensor Air Quality Sensor Hazardous Gas Detection Module

100.00 EGP 100.0 EGP 100.00 EGP

100.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.MQ135

Detailed Description:

  • The main chip: LM393, MQ135 gas sensing probe
  • Operating voltage: DC 5V

Sensitive gas:

Ammonia, nitrogen oxide, alcohols, aromatic compounds, sulfide and smoke


  • Signal output indicator instructions.
  • Dual signal output (analog output, and TTL level output).
  • TTL output valid signal is low; (output low signal light, which can be accessed by microcontroller IO port).
  • Analog output with increasing concentration, the higher the concentration, the higher the voltage.
  • Sulfide, benzene Department of steam, smoke and other harmful gases with high sensitivity.
  • Has a long life and reliable stability.
  • Rapid response recovery characteristics


A hazardous gas detection apparatus for the family, the environment, suitable for ammonia, aromatic compounds, sulfur, benzene vapor, smoke and other gases harmful gas detection, gas-sensitive element test concentration.

Air quality sensor detecdetect a wide range of gases, including NH3, NOx, alcohol, benzene, smoke and CO2. Ideal for use in office or factory, simple drive, and monitoring circuit.
