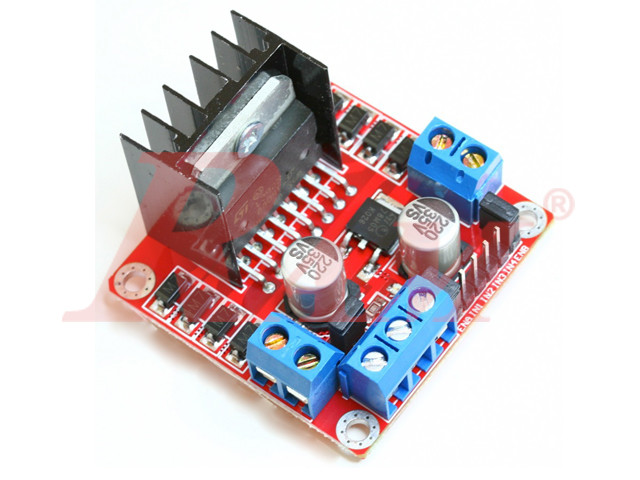

L298 Module Red Board (Dual H-Bridge motor driver using L298N)

https://ram-electronics.odoo.com/web/image/product.template/7084/image_1920?unique=9b97f50

85.00 EGP 85.0 EGP 85.00 EGP

85.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.L298.RED

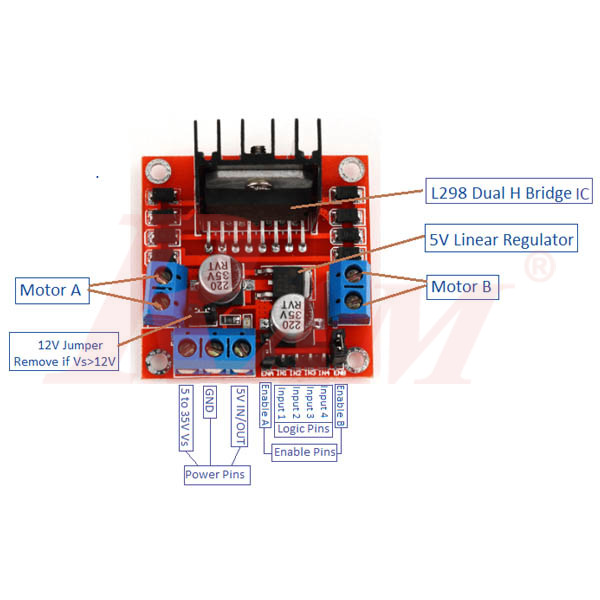

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor. This is a very high-quality board and is very compact for designs where space matters.

Features :

  • Double H bridge drive
  • Chip L298N (ST NEW)
  • Logical voltage 5V
  • Drive voltage 5V-35V
  • Logic current 0mA-36mA
  • Drive current 2A per channel (MAX single bridge)
  • Max power 25W
  • Weight 30g
  • Small size 43*43*27mm ( approx 1.75" x 1.75" x 1")
  • Compatible with L297/L298 driver

Download
