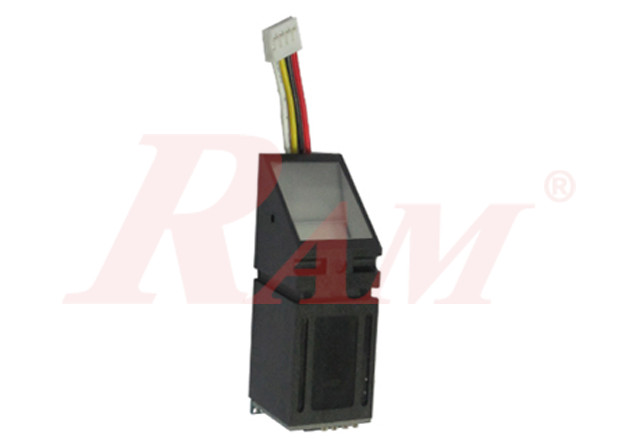

Fingerprint Module SM12

Finger Print Module Serial UART TTL

950.00 EGP 950.0 EGP 950.00 EGP 1,100.00 EGP

950.00 EGP 1,100.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.FINGERPRINT.SM12


Secure your project with biometrics - this all-in-one optical fingerprint sensor will make adding fingerprint detection and verification super simple. These modules are typically used in safes -  there's a high-powered DSP chip that does the image rendering,  calculation, feature-finding, and searching. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash, and search. You can also enroll new fingers directly - up to 162 fingerprints can be stored in the onboard  FLASH memory. There's a red LED in the lens that lights up during a  photo so you know it's working.

There are two requirements for using the optical fingerprint sensor. First, you'll need to enroll fingerprints  - that means assigning ID #'s to each print so you can query them later. Once you've enrolled all your prints, you can easily 'search' the sensor, asking it to identify which ID (if any) is currently being photographed. You can enroll using the Windows software (easiest and neat because it shows you the photograph of the print) or with the  Arduino sketch (good for when you don't have a Windows machine handy or for on-the-road enrolling) Enrolling new users with Windows: The easiest way to enroll a new fingerprint is to use the  Windows software. The interface/test software is unfortunately Windows-only but you only need to use it once to enroll, to get the fingerprint you want stored in the module. First up, you'll want to connect the sensor to the computer via a USB serial converter.

The easiest way to do this is to connect it directly to the USB/Serial converter in the Arduino. To do this, you'll need to upload a 'blank sketch' This one works well:

  • This sketch will allow you to bypass the Atmega chip and connect the fingerprint sensor directly to the  USB/Serial chip converter.
  • Red connects to +5V
  • Black connects to Ground
  • Yellow goes to Digital 0
  • Green goes to Digital 1

Wire up the sensor as described in the sketch comments after uploading the sketch. Since the sensor wires are so thin and short, we stripped the wire a bit and melted some solder on so it made better contact but you may want to solder the wires to header or similar if you're not getting good contact. When you plug in the power,  you should see the red LED blink to indicate the sensor is working.

The Output Pins:

  • RED  -> VCC
  • BLACK -> GND
  • YELLOW  -> RXD
  • GREEN -> TXD
