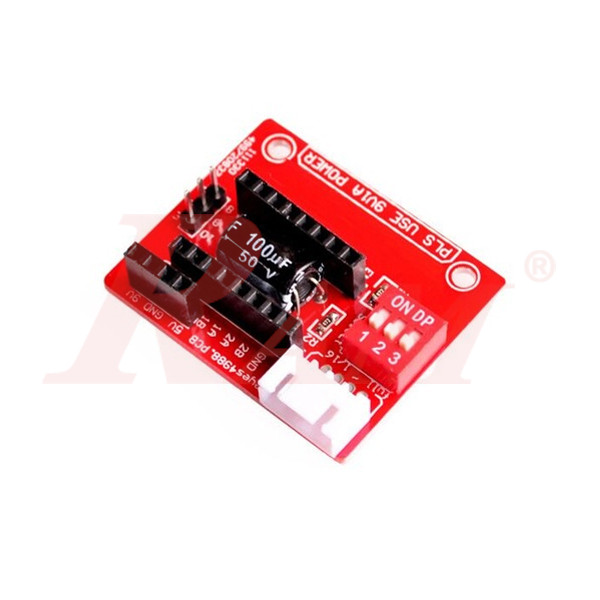

Expansion Board for A4988/Drv8825 - Stepper Motor Driver

https://www.ram-e-shop.com/web/image/product.template/7630/image_1920?unique=263afec

65.00 EGP 65.0 EGP 65.00 EGP

65.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.EXPANTION.A4988

A4988/DRV8825 Stepper Motor Driver Control Shield Expansion Board for 3D Printer Parts

Features:

  • You can use A4988 / DRV8825, take care of the direction when inserting, or it may burn down the driver.
  • The jumper hits the position of ON DP to indicate 16 subdivisions (A4988) or 32 subdivisions (DRV8825).
  • White connector: for connection motor.
  • Female Power connector: for connects 5V and 12V-24V power.
  • E, S, D, respectively corresponding to the connection of the Enable/Step/Dir - drive signal output
