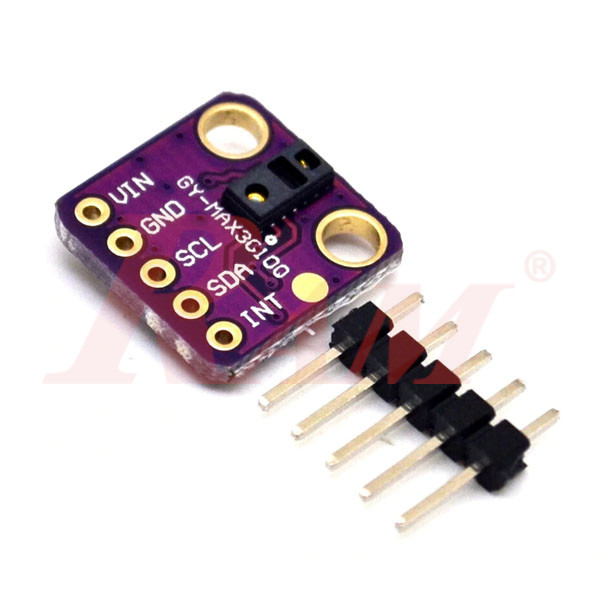

MAX30100 EGC Heart Rate and Oximeter Sensor

250.00 EGP 250.0 EGP 250.00 EGP

250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.ECG.MAX30100

MAX30100 EGC Oximeter sensor - Heart Rate Sensor - Pulse Sensor Heart Rate click carries Maxim’s MAX30100 integrated pulse oximetry and a heart-rate sensor. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector.

This particular LED color combination is optimized for reading the data through the tip of one’s finger. The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature.

Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. The operates at the 3.3V power supply.


  • Optical sensor: IR and red LED combined with a photodetector
  • Measures absorbance of pulsing blood
  • I2C interface plus INT pin
  • Complete pulse oximeter and heart rate sensor solution, simplified design, integrated LEDs, photosensor, and high-performance analog front
  • Ultra-low power operation increases battery life for wearable devices


  • Working voltage: 1.8 ~ 5.5V
  • Shutdown Current: 0.7 µA
  • Dimensions: 18 x 14 x 3 mm

Pin Configuration:

  1. VIN Input voltage (1.8V to 5.5V)
  4. INT MAX30100INT
  5. IRD MAX30100 IR_DRV
  6. RD MAX30100 R_DRV
  7. GND Ground
