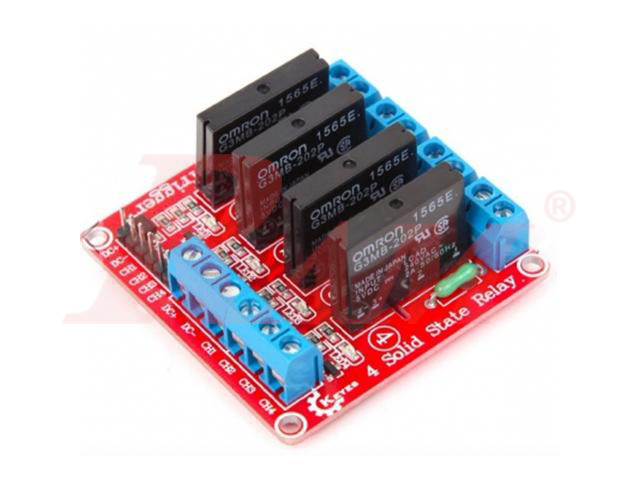

4 Output Channel SSR Solid State Relay 5V Module (SKU#KIT.D14)

https://www.ram-e-shop.com/web/image/product.template/7279/image_1920?unique=263afec

Active at HIGH Level

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.D14.SOLID.4RELAY

Specifications

  • 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
  • Dimensions : 57x55x25 (length x width x height)
  • Input Power: 5VDC
  • Voltage: 5V
  • Quiescent current : 0 mA
  • Operating current: 12.5mA
  • Trigger Voltage: 3.3-5V
  • Trigger current: 2mA
  • Connection :
    • DC +: positive power supply (according to the relay voltage supply)
    • DC-: negative power supply
    • CH1: relay module signal triggering end (Relay 1)
    • CH2: relay module signal triggering end (Relay 2)
    • CH3: relay module signal triggering end (Relay 3)
    • CH4: relay module signal triggering end (Relay 4)
