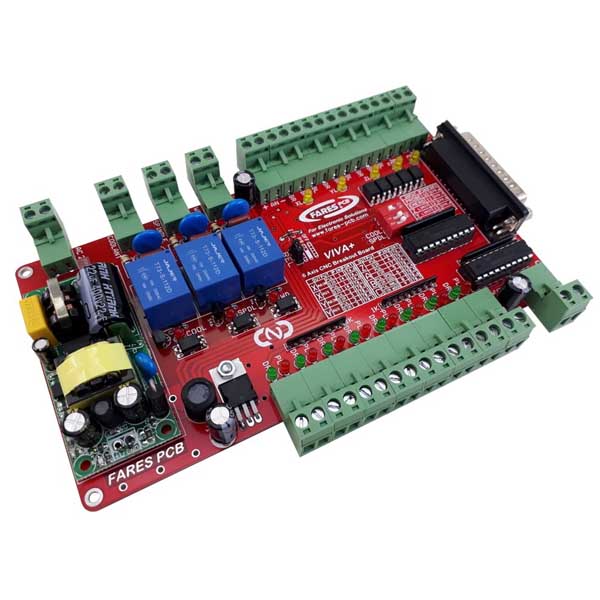

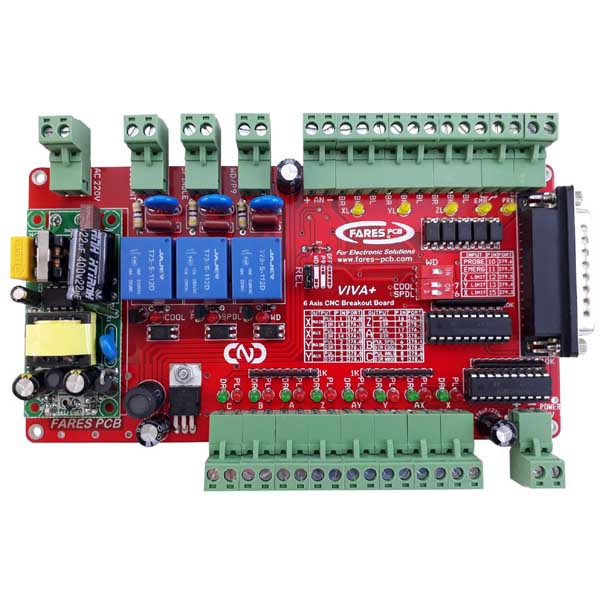

PC-CNC 6Axis Breakout Board (VIVA+) Parallel Interface Control 6 Axis - Compatible with MACH3

General Description:

VIVA+ is a completely buffered CNC parallel breakout board. Supports up to 6 axes, five inputs, spindle and coolant output relays, analog output 0-10V, watchdog protection with extra output relay, and is powered from 220VAC.

Features:

• Completely supports MACH3 and any other soft tool that uses an LPT port.
• AC 220V input power.
• 6 axes control signals (Pulse ”PUL” and Direction “DIR”) :

1. Main / Auxiliary X-axis.
2. Main / Auxiliary Y-axis.
3. Z-axis.
4. A-axis.
5. B-axis.
6. C-axis.

• Control signals are TTL compatible (10mA).
• Supports five external inputs. Three inputs for axes limits (NPN proximity sensors or micro switch inputs) and two inputs for emergency stop and probe inputs (dry contact).
• All inputs are optically isolated for safety.
• Two relay outputs for spindle and coolant control (5A maximum current).
• Optional extra output relay (controlled from pin9).
• 0-10V analog output (PWM-controlled) for controlling spindle speed.
• Watchdog feature with optional relay output to ensure that all outputs are disabled during PC starting up and software program loading.All outputs and inputs are brought out via pluggable screw clamp connectors for flexibility.
• LED indicator for :

1. Output pulse signal “PUL” (RED LED).
2. Output direction signal “DIR” (Green LED).
3. Output relays “spindle”, “coolant” and “watchdog” (RED LED).
4. Input signals ”XL”, ”YL”, ”ZL”, ”EMR”, and ”PRB” (Yellow LED).
5. Input power (RED LED).


• Dimension: 180 X 110 X 30 mm.
