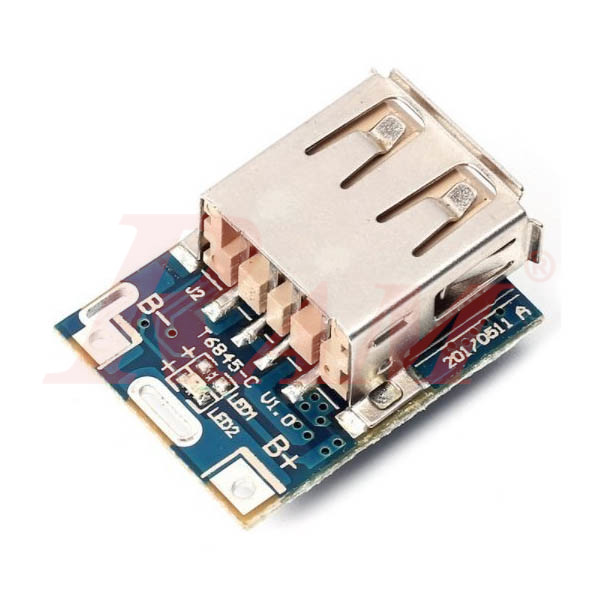

Power Bank Module T6845-C

https://www.ram-e-shop.com/web/image/product.template/8534/image_1920?unique=804218e

5V Step-Up Power Module Lithium Battery Charging Protection Board USB

50.00 EGP 50.0 EGP 50.00 EGP

50.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.BANK.T6845C

The 5V Step-Up Power Module Lithium Battery Charging Protection Board or the Power bank module contains a single chip that has multiple applications. This module is widely used as a power bank application, as it can provide large load currents and large discharge currents up to 1A, which is ideal for device charging. The module has onboard LEDs to indicate charging and discharging.

Specifications:

  • Input Voltage: 3.7V - 5.5V DC
  • Output Voltage: 5V DC
  • Output Current: 1A
  • Charging Current: 1A
  • Discharging limit: 2.9V
  • Maximum standby current: 8uA
  • Micro USB

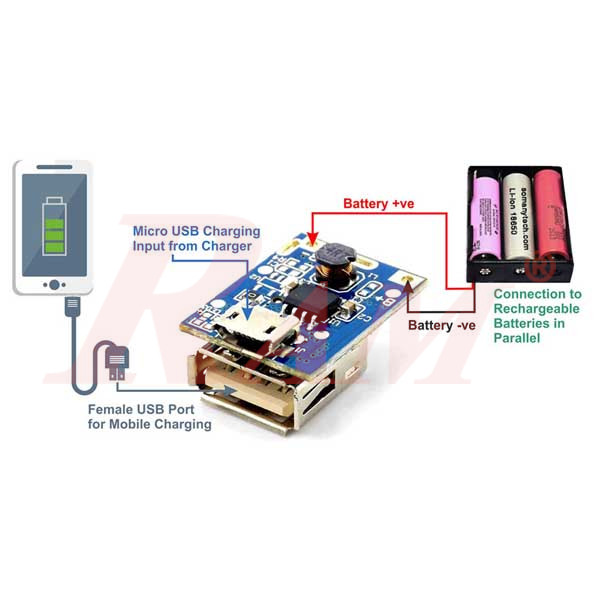

NOTE: if you going to use 3.7V 18650 battery, connect them in parallel for not to exceed the voltage over 5.5V
