Project Working Area for ATMEGA8/48/88/168/328

https://ram-electronics.odoo.com/web/image/product.template/8922/image_1920?unique=a406338

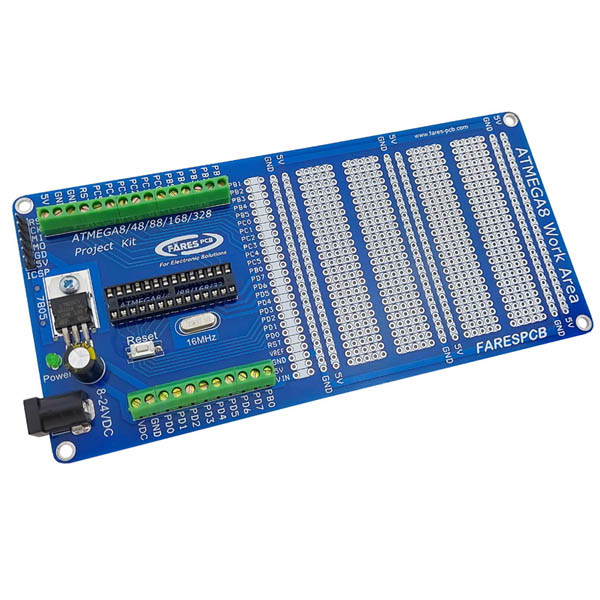

ATMEGA328 Project Kit supports 28-pin DIP AVR microcontrollers such as ATMEGA8 and ATMEGA328

200.00 EGP 200.0 EGP 200.00 EGP

200.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.ATMEGA328.PROJECT

Features:

  • Project Kit supports ATMEGA8, ATMEGA48, ATMEGA88, ATMEGA168, and ATMEGA328.
  • Project Kit can be powered from any general DC adaptor 8-20V thanks to an on-board 5V regulator.
  • On-board reverse polarity protection.
  • All Microcontroller pins are exposed to screw clamp terminals for easy access.
  • Large size work area 144 horizontal lines X 5 points, 36 X 3 vertical 5V lines, 36 X 3 vertical GND lines, 36 lines X 2 points (Blue pill pins in addition to power rails GND, 5V, VIN).
  • The project Kit includes a green LED for power indication.
  • 6-Pin ICSP header socket for connecting an external programmer (no need for removing chip).
  • Project Kit provides a 16MHz crystal oscillator.
  • Project Kit contains a Reset switch.

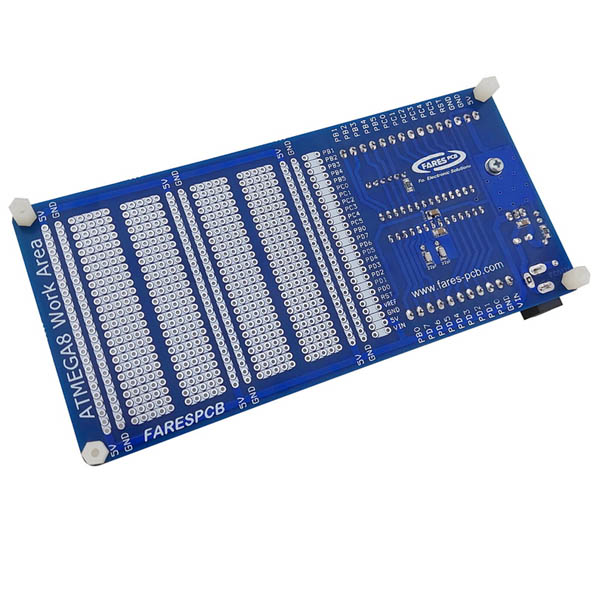

  • Four 7mm M-F spacers are added to keep the board out of any wires and components erroneously located under the board.
  • Dimensions: 162 X 77 X 20mm.
