  2. Kit ARM (Panda) Development & Training System Based on STM32F103C8T6

Kit ARM (Panda) Development & Training System Based on STM32F103C8T6

https://ram-electronics.odoo.com/web/image/product.template/8631/image_1920?unique=0ca40b9

With a Full Set of Accessories (OLED LCD + Blue Bill + ST LINK + Cable)
Perfect for Electronic Labs or Personal Learning

1,750.00 EGP 1750.0 EGP 1,750.00 EGP

1,750.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
Perfect for Electronic Labs or Personal Learning

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.ARM.PANDA.BLUE

General Description

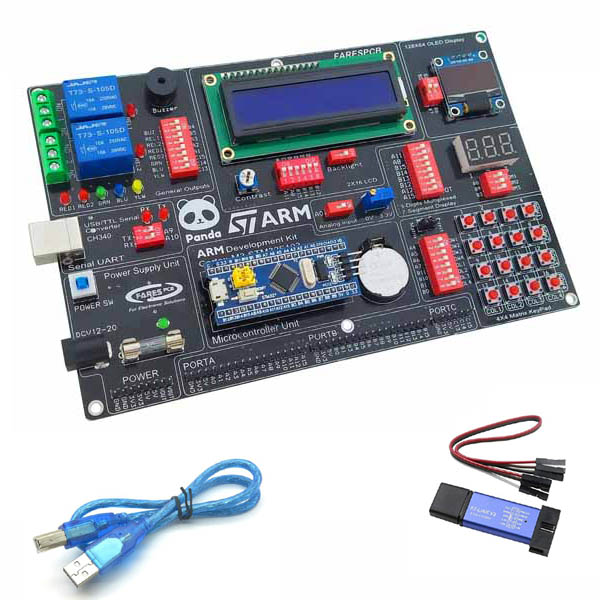

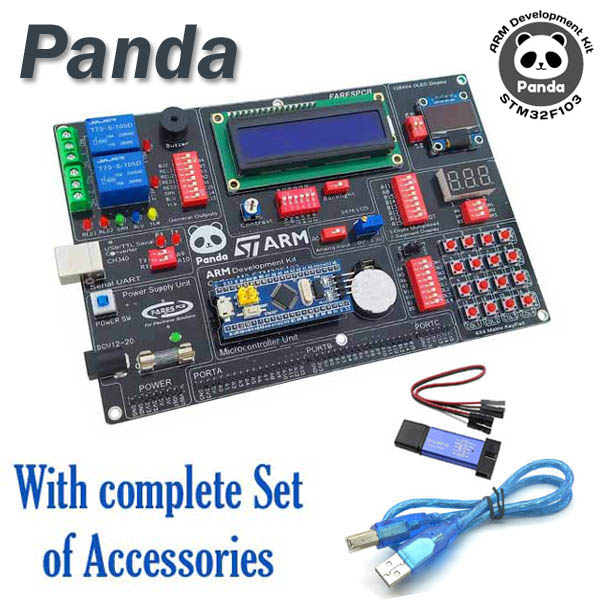

Panda kit is an ARM development kit based on Blue Pill module which supports 32-Bit ARM Cortex-M3 microprocessor STM32F103C8T6.

Panda Kit Features

  1. Supports Cortex-M3 (STM32F103C8T6).
  2. USB or adaptor powered.
  3. 16 Input switches with two operating modes.
  4. Output unit involves.
    • Five output LEDs
    • Two output relays with LED indicators
    • one output buzzer
  5. 2X16 Character LCD with contrast and backlight control.
  6. 128X64 I²C 0.96″ OLED display.
  7. Three digits 7segment display.
  8. Analog input.
  9. USB/TTL serial converter CH340.
  10. All GPIOs are brought out to pin headers.

Package includes:

  1. Panda Kit.
  2. Blue Pill module (STM32F103C8T6).
  3. ST-Link V2 Programmer
  4. 0.96″ 128X64 OLED display.
  5. USB cable A/B type.

Download
