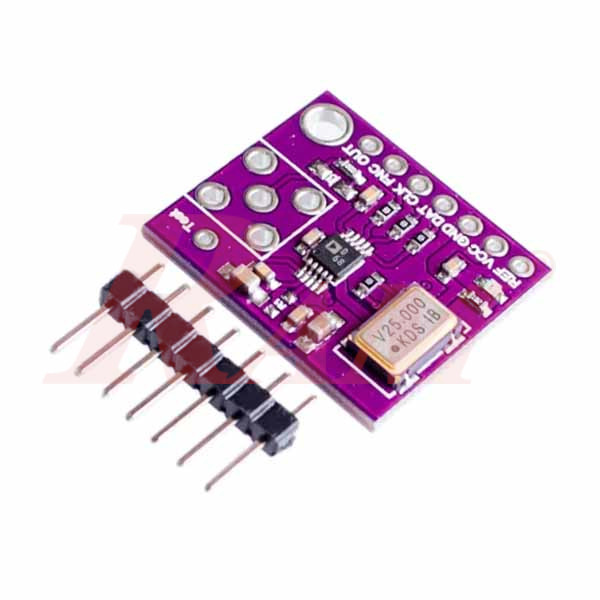

AD9833 DDS Wave Signal Generator Sin/Triangle/Square

650.00 EGP 650.0 EGP 650.00 EGP

650.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.AD9833.SIGNAL.GEN


  • The AD9833 is a Direct Digital Synthesis (DDS) waveform generator capable of producing sine, triangle, and square waveforms. It operates with a 25 MHz clock input and provides a 10-bit frequency resolution. The frequency output range is from 0 Hz to 12.5 MHz.
  • The AD9833 offers a flexible frequency tuning capability with both frequency and phase registers that can be programmed via a serial interface. It also includes a power-down mode for low power consumption.
  • Overall, the AD9833 is a versatile waveform generator suitable for various applications requiring precise frequency control and waveform generation.

Technical Specifications for the AD9833 DDS Wave Signal Generator:

  1. Waveforms: Sine, Triangle, Square
  2. Frequency Range: 0 Hz to 12.5 MHz
  3. Frequency Resolution: 0.1 Hz
  4. Phase Control: 0 to 360 degrees
  5. Output Voltage: 0.6 Vpp to 2.8 Vpp
  6. SPI Interface: 3-wire SPI
  7. Power Supply: 2.3 V to 5.5 V
  8. Power Consumption: 20 mW
  9. Operating Temperature Range: -40°C to 105°C
  10. Package: 10-lead MSOP
