4 Output Relay Module Works on (5V/12V/24V) Signal


185.00 EGP 185.0 EGP 185.00 EGP

185.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.4RELAY.PLC

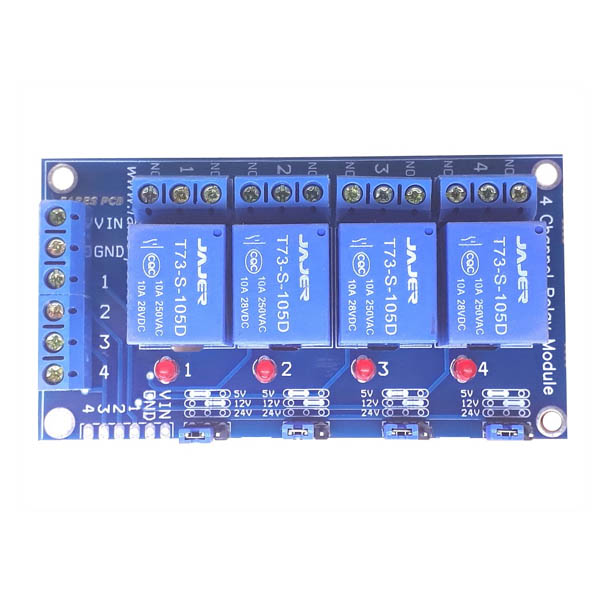

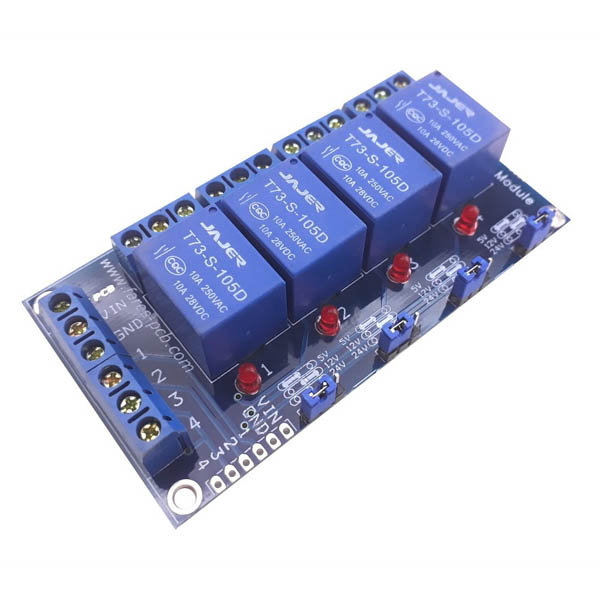

4-Channel relay module (5V/12V/24V) up to 10A rated current directly interfaced to microcontroller or TTL logic

RM4V is a simple cheap Relay driver module. It supports four output relays that can be used to control AC and DC electrical devices such as lamps, motors, locks, solenoids. RM4V may be powered from 5V, 12V, 24V DC supply.

Some of possible applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation

RM4V Module key features

  • Four output relays rated for 5A contacts (resistive load).
  • Various power supply source (5V, 12V, 24V).
  • Normally open and normally closed contacts are available.
  • LED indicator for each relay status.
  • Dimension: 95 x 60 x 17 mm.

Very good to use it with motor switching control or pump starting applications with your microcontrollers , arduino boards or PC port.
