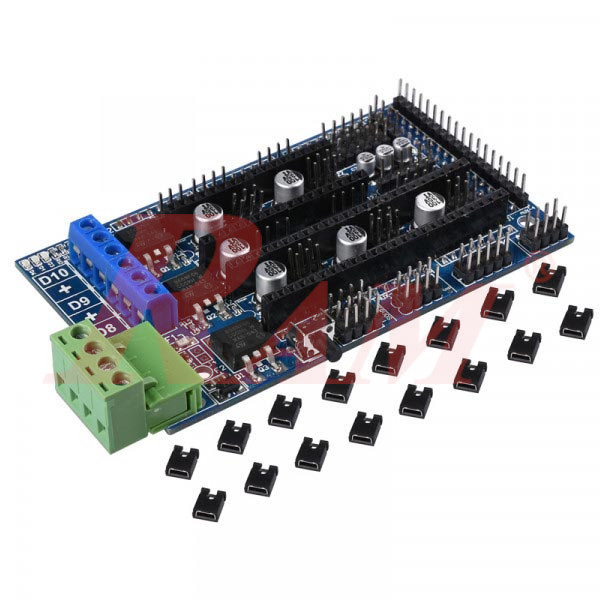

RAMPS 1.5 BASE ON RAMPS 1.4 CONTROL PANEL BOARD EXPANSION BOARD FOR 3D PRINTER
Description:

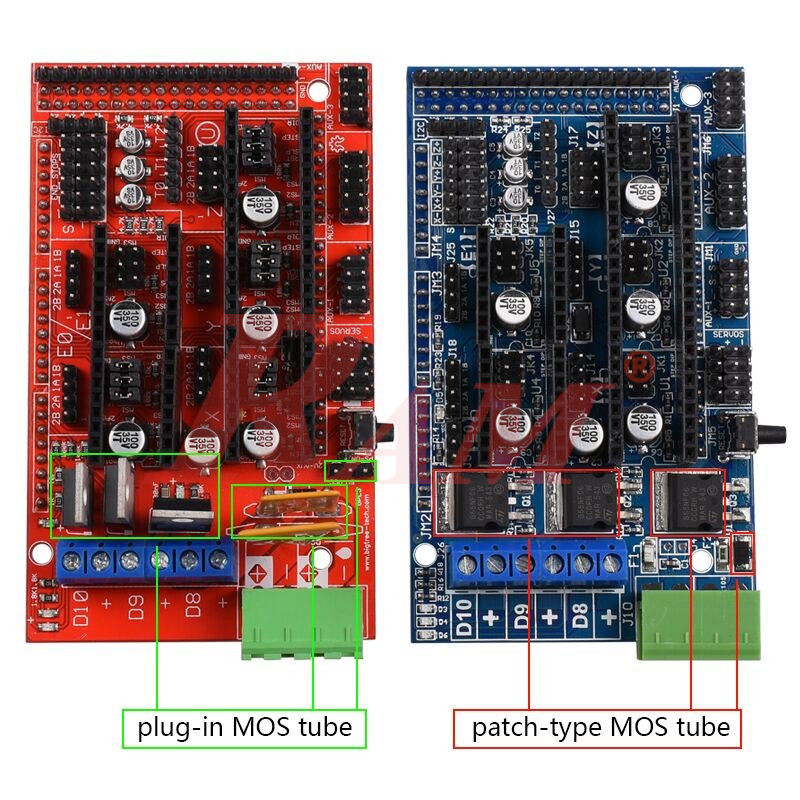

For Ramps 1.5 control board, They changed the original plug-in MOS tube to patch-type MOS tube to solve the problem of plug-in MOS tube easy to break, taking up a large area, and poor heat dissipation, which can improve the stability and aesthetics of the board. The features of multiple extended interfaces and replaceable parts make RAMPS1.5 become a control board with powerful upgrade capability and scalable modularity. The controller board can be used when the pins on the back of the board are connected to the Arduino Mega and the front is connected to stepper motor drives.
Features:
- It can be connected to LCD and other parts.
- There are heater and fan MOSFET outputs and 3 thermistor interfaces
- 5A additional security and component protection fusion
- Heated bed controls additional 11A fuses
- Applied to 5 stepper drive board (A4988 , DRV8825 , ...)
- Design of Pololu plate pin socket can be easily replaced or removed for future design
- I2C and SPI pins are available for future expansion
- Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
- These connectors are gold-plated and have a rated current of 3A, which is very compact.
- The LED will light when the heater has output
- Support 2 motors to connect to Z Prusa Mendel
