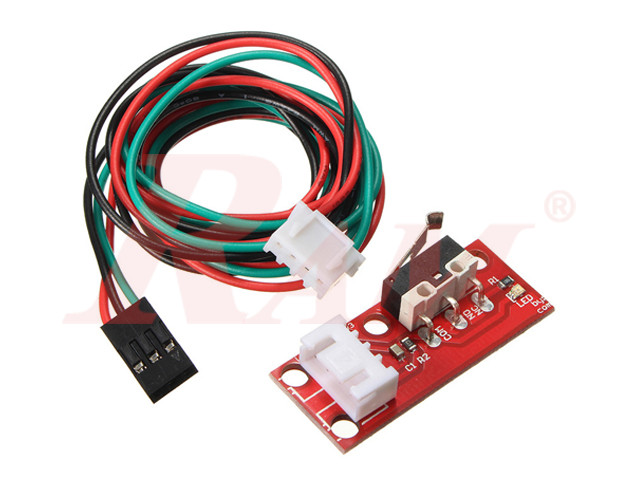

3D Printer Mechanical End Stop Switch Module For RAMPS (SKU#3D1003)

https://www.ram-e-shop.com/web/image/product.template/7267/image_1920?unique=263afec

30.00 EGP 30.0 EGP 30.00 EGP

30.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.3D.1003

3D printer Endstop mechanical limit switch RAMPS RepRap

Description:

The mechanical end stop is a simple solution to a simple problem. We want to be able to detect when an X/Y/Z stage has reached its minimum or maximum. Instead of messing with flags or complicated light beam interruptors, we use a mechanical switch. If we place the switch in the path of the stage, then the stage itself will simply close the switch when it moves against it. Other than properly positioning the switch, we do not need to modify the stage at all.

  • Board Size: Approx. 39 x 16 x 7mm
  • Cable Length: 65 cm

Connection:

  • Red Wire: VCC (ramps of +)
  • Black Wire: GND (ramps of -)
  • Green Wire: SIGNAL (ramps in s)
