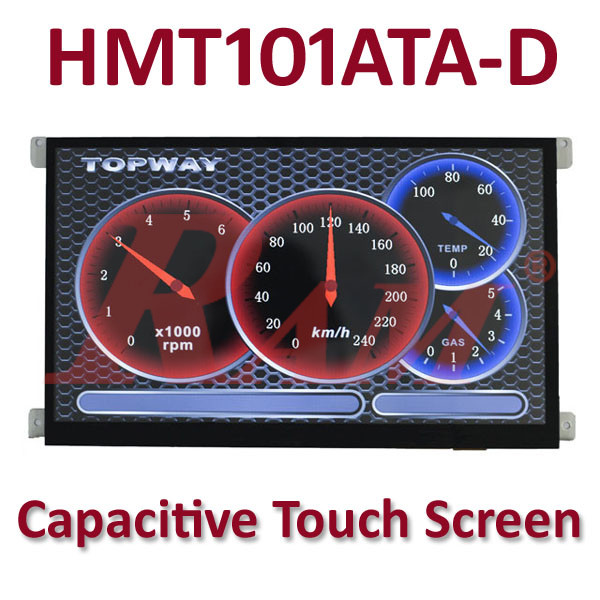

HMT101ATA-D Smart TFT LCD Module – 10.1 Inch Capacitive Touch Display

The HMT101ATA-D is a 10.1-inch Smart TFT LCD module with a built-in 32-bit MCU, designed to simplify HMI and display development. It supports TOPWAY TML graphic files, allowing the display interface to operate independently without continuous MCU control. This makes it ideal for industrial control, instrumentation, medical electronics, and power equipment applications

Key Features

• Built-in 32-bit MCU with graphics engine
• Standalone operation using preloaded TML interface files
• Capacitive touch panel integrated
• RS232 (UART) communication interface
• On-board Flash memory, RAM, and RTC
• Wide operating temperature range
• Simplifies host MCU firmware and wiring

Display Specifications

• Display Size: 10.1 inch (diagonal)
• Resolution: 1024 × 600 pixels (RGB)
• Color Depth: 65K colors (16-bit)
• Pixel Configuration: RGB Stripe
• Display Mode: Transmissive / Normal White
• Viewing Direction:
  • 6H (gray-scale inverse)
  • 12H (for color scale content)
• Active Area: 222.72 × 125.28 mm
• Outline Dimensions: 251.0 × 145.0 × 20.2 mm
• Backlight: LED
• Luminance: Typical 300 cd/m²

Optical Characteristics

• Viewing Angle (CR ≥10):
  • Top: 75° (typ.)
  • Bottom: 80° (typ.)
  • Left / Right: 80° (typ.)
• Contrast Ratio: 800:1 (typ.)
• Response Time:
  • Rise (TON): 7 ms (typ.)
  • Fall (TOFF): 9 ms (typ.)
• NTSC Color Gamut: 50% (typ.)
• Luminance Uniformity: 80% (typ.)

Touch Panel

• Type: Capacitive Touch Panel (CTP)
• Supports coordinate reporting and key ID response via UART
• Touch behavior configurable via system commands

Electrical Specifications

• Operating Voltage:
  • Typical: 12 V
  • Range: 11 – 26 V
• Operating Current:
  • Typical: 340 mA (normal display, no USB connected)
• RTC Backup Battery Current:
  • Typical: 0.6 µA

Interface & Communication

• Interface Type: RS232 (UART)
• Default Baud Rate: 115200 bps
• Terminal Connector: K1
• Signals: VDD, GND, TX, RX, RTS (BUSY)
• Hardware handshake supported and recommended

Memory Resources

• Flash Memory:
  • TML files, images, icons, user data
• RAM (VP Variables):
  • Strings, integers, graphic arrays
• User Flash: 256 KB
• USR BIN Area: 256 KB
• RTC: Built-in (battery backed)

Operating Conditions

• Operating Temperature: −20°C to +70°C
• Storage Temperature: −30°C to +80°C
• Humidity: No condensation

Typical Applications

• Industrial HMI panels
• Measurement & instrumentation displays
• Medical equipment interfaces
• Power control systems
• Automation and control terminals
