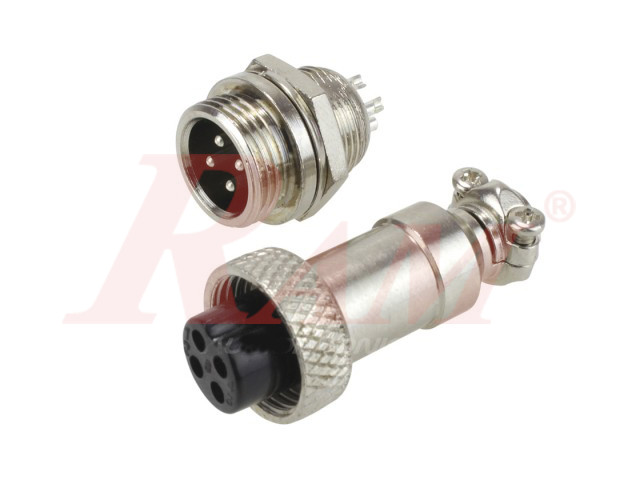

GX12-4 Pole Metal Male Female Panel Chassis Connector
Internal Reference:
GX12.4PIN
The connector takes the form of a push-pull locking connection, which is quick and easy to insert and withdraw.
Product parameter:
- Rated current: 5A
- Rated Voltage (Vrms): 200V
- Solder Inner diameter: 1.2mm
- Max cable diameter: 5mm
- Insulation resistance: Normal temperature 1500MΩ
