Features

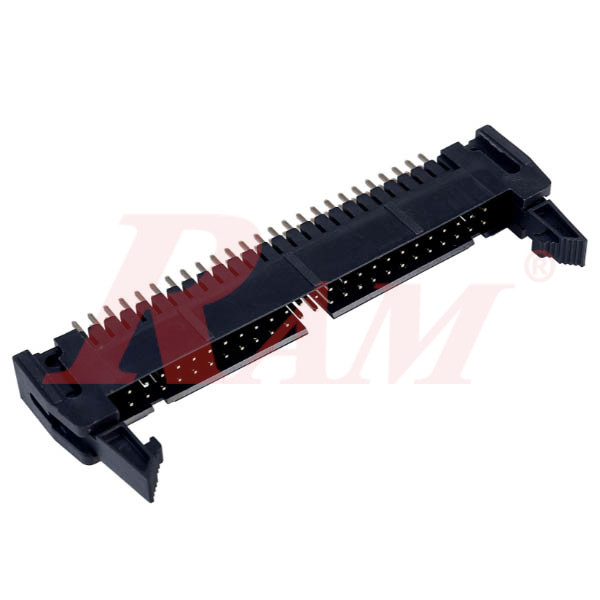

- 50-Way, male IDC connector plug, 2-Row
- Straight orientation
- Long latches
- Through-hole mounting
- 2.54mm Standard pin spacing
- Operating temperature range of -45˚C to +105˚C
- Low-resistance gold-plated contacts
- Current rating of 1 A
- Insulation resistance of 5,000 mΩ a minute at 500Vdc
