DC Geared Motor 12V 80 rpm Encoder Motor High Torque Turbo Worm - Model GW370

GW370 DC 12V 80rpm Encoder Motor High Torque Turbo Worm Geared Motor

Specification:

• Material: Metal
• Voltage: DC 12.0V
• Encoder motor end 11 signals
• Input voltage(V) 12
• Retarder Reduction Ratio 1:70
• No Load Speed(RPM) 80
• No Load Current (mA) ≤60
• Rated torque(kg.cm) 3.3 Kg.cm
• Rated Speed(RPM) 60
• Rated Current(A) ≤0.4
• Max. Torque ≥ 10 Kg.cm
• Unload Current(A) ≤1.0
• Construction: Permanent Magnet
• Commutation: Brush

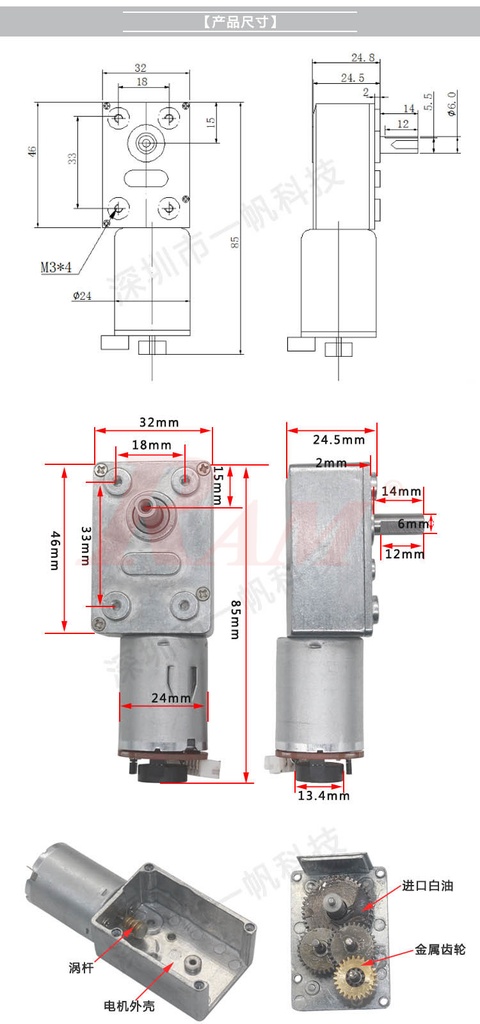

• DIY Dimension: 82*32*27 mm
• Shaft Diameter: 6 mm
• Net Weight:0.18 Kg
• Box Materials: Zinc alloy, zincification

Suitable For: Window, a door opener, miniature winch

Feature:

• Worm gear motor with self-locking, i.e. in the absence of electricity in the motor, the output shaft is not to move, that is self-locking.
• Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion.
