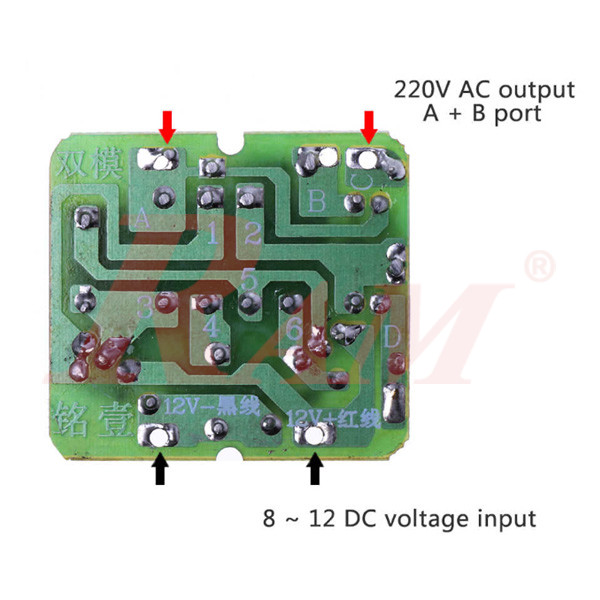

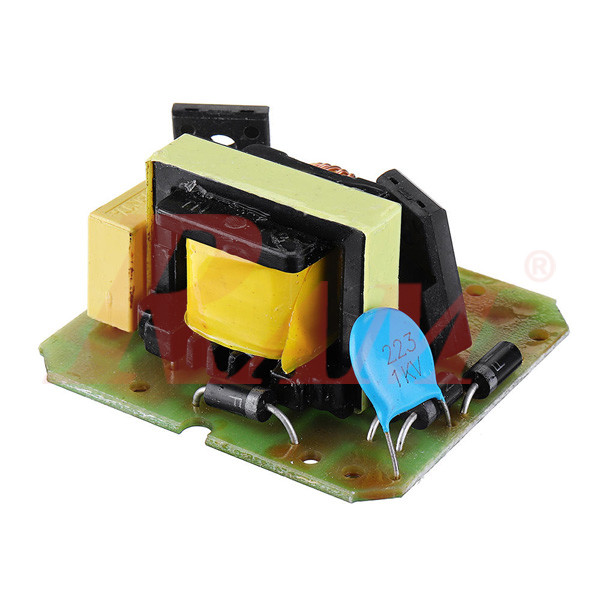

DC 12V to AC 220V - 40W Inverter Module

This product is the latest 2nd generation booster module, step-up transformer. Input 12V DC, 220V AC at the other end can be obtained. Frequency of high-frequency, higher output power, can drive 40W energy-saving lamps. This Module can turn 8V-13V DC battery into a household 220V AC

Specifications:

• Input:12V DC
• Output:220V AC
• Power:40W
• Module Size: 4.3 x 3.8 x 2.5cm

Note

1. This board is a high-frequency square wave AC output, so the general inductive appliances can not bring! ! Such as: motor, electric fan, coil transformer, etc. Another: simple resistance and resistance step-down small appliances, cheap resistance to resist buck LED lamps, etc. may not be used
2. Load electronic products (such as: energy-saving lamps, LED lights, mobile phone chargers, DVD set-top boxes, etc.) It is recommended to unplug the high-frequency rectification shorts on the board or low-voltage gears
3. When using, it is necessary to consider that the power supply should not be continuously in full load for a long time. For continuous long-term working conditions, it is recommended to operate the switching power supply at 80% efficiency. Leave room for use to ensure that the power supply can work for a long time, otherwise, it will cause early failure.
4. The power supply can't be reversed. The other power supply and power line should have enough current.
5. Because there is no protection output, do not overload or short circuit.
6. Output high-frequency square wave AC voltage Many general multimeters can't measure or show low or high (is incorrect, not actual voltage) (can be rectified and tested with DC file)
