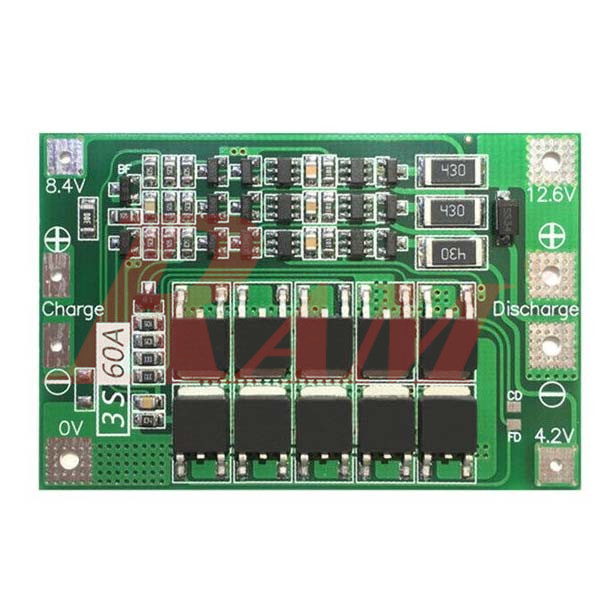

3S 60A Bms Board Lithium Li-Ion 18650 Battery Protection Board With Balance For Drill Motor 11.1V 12.6V 18650 Lipo Cell Module

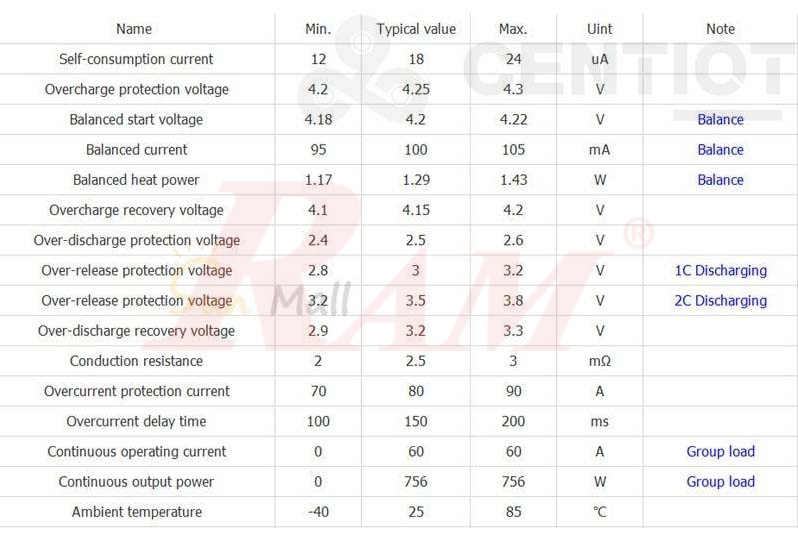

Specification:
- Overvoltage range: 4.25 ~ 4.35v ± 0.05v
- Charging voltage: 12.6V - 13.6V
- Over-discharge voltage range: 2.9 ~ 3.3v±0.05v
- Maximum operating current: 0 ~ 60A
- Quiescent current: less than 24uA
- Working temperature: -40 +85 C
- Short circuit protection: Yes, delayed self-recovery
- Size: 62mm x 40mm x 1.2mm (LxWxH)
Important Cautions:

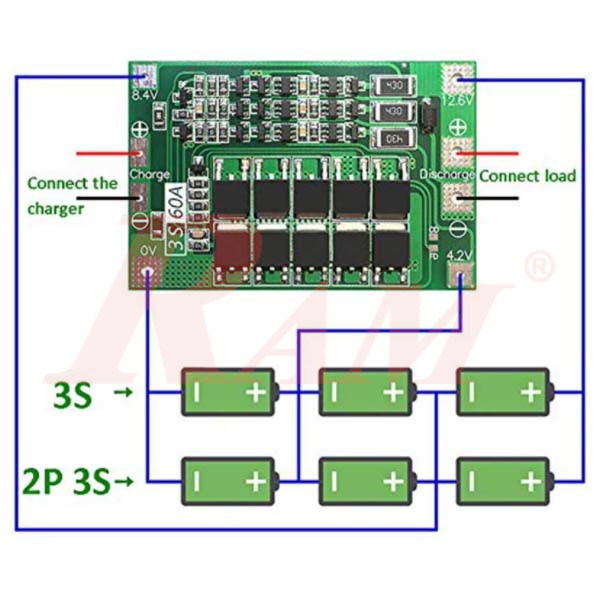

- Strictly according to the diagram wiring - do not make short circuit.
- After the wire is connected, it needs to charge the batteries first, then have output.
- When the battery is connected in series with 5 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
- Do not mix the good battery and the bad battery.
- It will be better if the capacity of the battery's internal resistance is closer.
