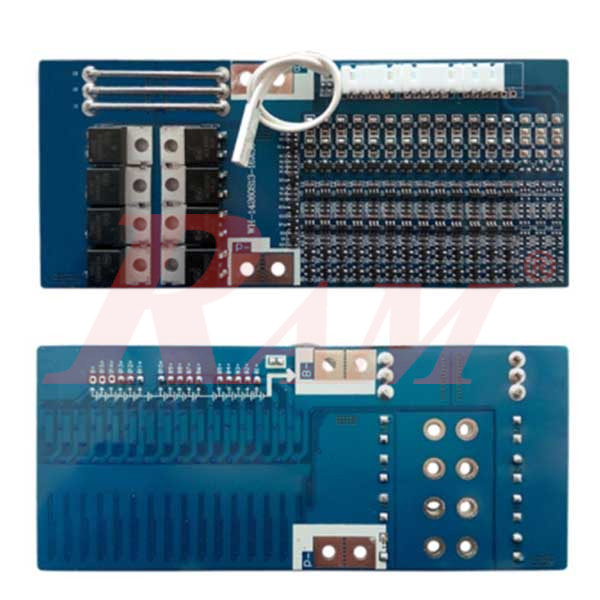

BMS 13 String 48.1V/30A

18650 Cell Lithium Battery Protection Board Current Peak 30A Over-Current Protection

1,850.00 EGP 1850.0 EGP 1,850.00 EGP

1,850.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: BMS.13S.30A


  • Size: 60 * 142 mm
  • With balance
  • With Balance/Signal Cables
  • With Temperature switch
  • Detection circuit (over-discharge, over-current, and load short circuit)

Important Cautions:

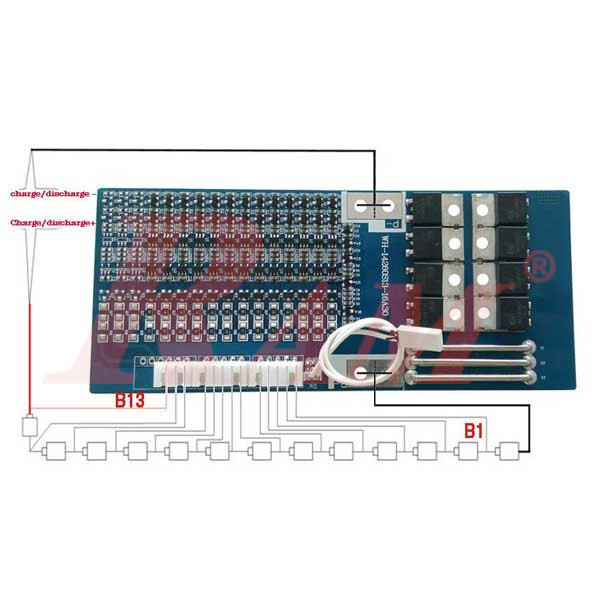

  1. Strictly according to the diagram wiring - do not make short circuit.
  2. After the wire is connected, it needs to charge the batteries first, then have output.
  3. When the battery is connected in series with 5 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
  4. Do not mix the good battery and the bad battery.
  5. It will be better if the capacity of the battery's internal resistance is closer.
