BeagleBone® Blue

Linux-based computer for robotics

4,500.00 EGP 4500.0 EGP 4,500.00 EGP

4,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: BEAGLEBONE.BLUE

This Board is 100% original

What is BeagleBone® Blue?

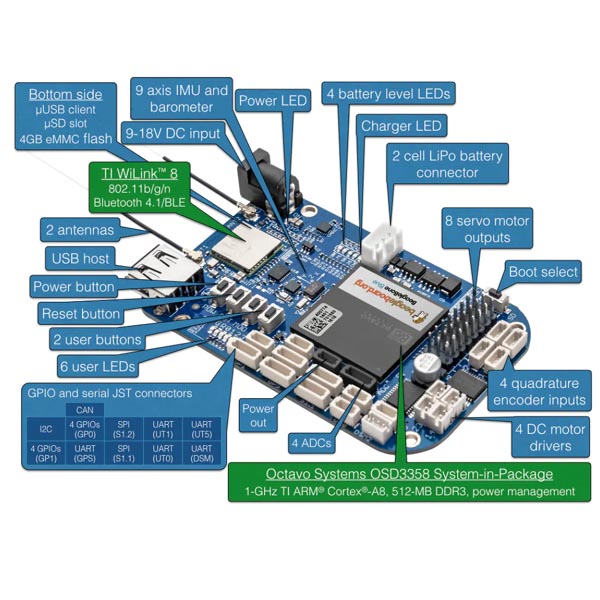

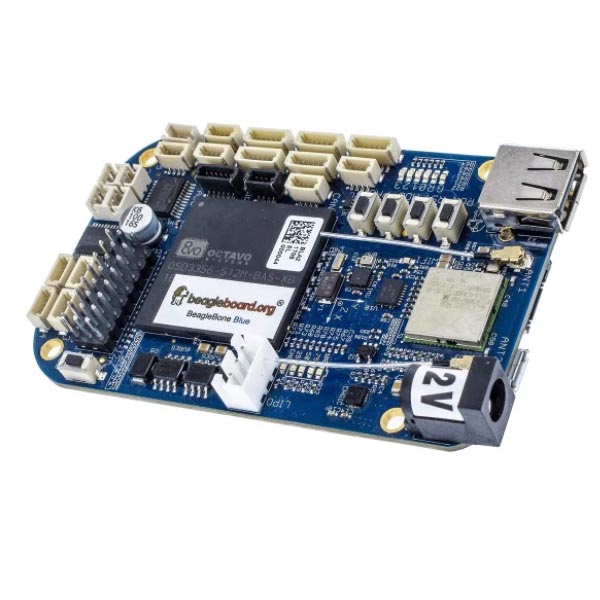

BeagleBone® Blue is an all-in-one Linux-based computer for robotics, integrating onto a single small (3.5″ x 2.15″) board the Octavo OSD3358 microprocessor together with wifi/bluetooth, IMU/barometer, power regulation and state-of-charge LEDs for a 2-cell LiPo, H-Bridges, and discrete connectors for 4 DC motors+encoders, 8 servos, and all of the commonly-needed buses for additional peripherals in embedded applications. Fully open source and actively supported by a strong community, the real-time performance, flexible networking, and rich set of robotics-oriented capabilities make building mobile robots with the Blue fast, streamlined, affordable, and fun.

Chipset Features

Octavo Systems OSD3358

Board Features


  • Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
  • SD/MMC Connector for microSD

Power Source

  • Battery support: 2-cell LiPo with balancing, LED state-of-charge monitor
  • Charger input: 9-18V

Wireless Connectivity

  • 802.11b/g/n WiFi
  • Bluetooth 4.1 and BLE

Motor Control

  • 8 6V servo out
  • 4 bidirectional DC motor out
  • 4 quadrature encoder in


  • 9 axis IMU (accels, gyros, magnetometer)
  • Barometer
  • Thermometer

User Interface

  • 11 user programmable LEDs
  • 2 user programmable buttons


  • Easy connect JST interfaces for adding additional buses and peripherals including GPS, DSM2 radio, UARTs, SPI, I2C, 1.8V analog, 3.3V GPIOs
